Terrasat iBUC G Single Ka-Band 125W 160W

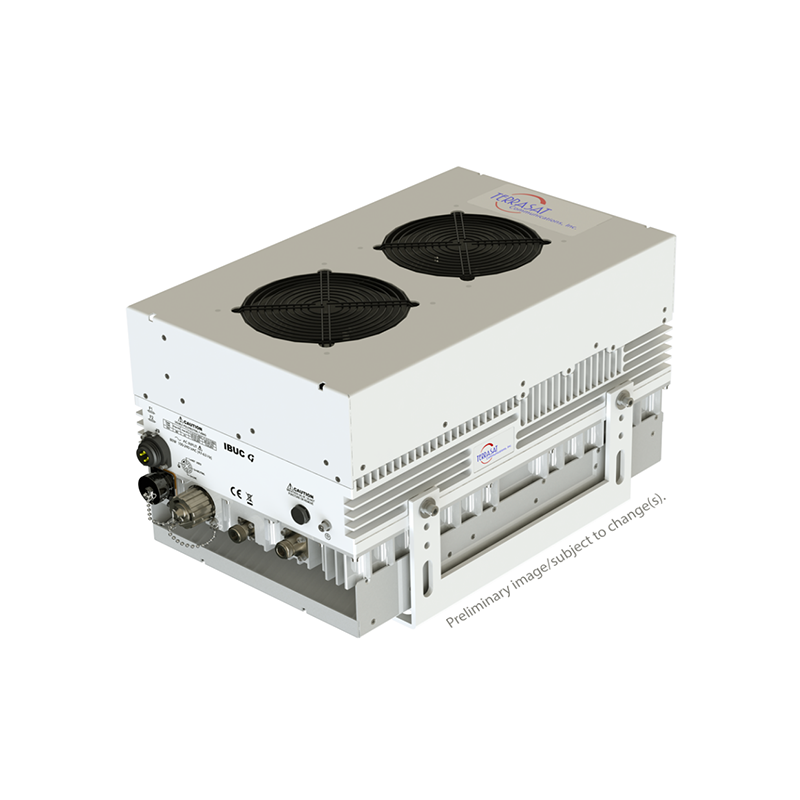

Terrasat IBUC G Ka-Band Single-Band 125W / 160W GaN BUC

High-Power 125W & 160W GaN Ka-Band Intelligent Block Upconverter for Multicarrier Applications

The Terrasat IBUC G Ka-Band Single-Band 125W and 160W models are high-power, antenna-mount GaN-based intelligent block upconverters engineered for demanding multicarrier Ka-band uplinks. Delivering up to +52 dBm saturated output power, these units provide strong linearity, excellent phase noise performance, and advanced Cyber Hardened monitoring options.

Designed for high data rate telecom hubs, maritime systems, government networks, and fixed Ka-band infrastructure, the IBUC G 125W / 160W combines Gallium Nitride efficiency with Terrasat’s intelligent management platform.

Esatcom Inc. supplies fully configured units tailored to your RF band, 10 MHz reference, IF interface, and security requirements.

Why Choose the 125W / 160W IBUC-G?

GaN amplifier technology for improved efficiency
19 dB minimum NPR for multicarrier operation
High linear output per MIL-STD-188-164C
Software-selectable multiband & IF options
Compact antenna-mount enclosure
AC powered (100–240 VAC)
Cyber Hardened secure M&C option available
3-Year Warranty

These models represent the highest output power in the Ka-Band Single-Band IBUC-G family.

RF Frequency Coverage

Band 1: 29.0–30.0 GHz

Band 2: 29.5–30.0 GHz

Band 3: 30.0–31.0 GHz

Band 4: 27.5–30.0 GHz

Local Oscillator (Non-Inverting):

Band 1: 28.0 GHz
Band 2: 28.5 GHz
Band 3: 29.0 GHz

Monitor & Control

Standard Version

Ethernet (HTTP, Telnet, SNMPv2c)
RS232/485 via MS-Type connector
FSK multiplexed on TX IFL

Cyber Hardened Version

HTTPS, SSHv2, SNMPv3 (USM & VACM)
FIPS 140-2 compatible
Two NTP servers for redundancy

XSS protection
New controller board & firmware

Designed for secure government and defense SATCOM networks.

Ordering & Configuration

Configurable parameters include:

Output power

AC powered

IF connector type

Spectral Sense & 10 MHz Reference

RF frequency plan

Standard or Cyber Hardened M&C

WGS compatibility option

Color options

1+1 Transmit Redundancy with Eco-Mode

Contact Esatcom Inc. to confirm the correct part number before ordering.
