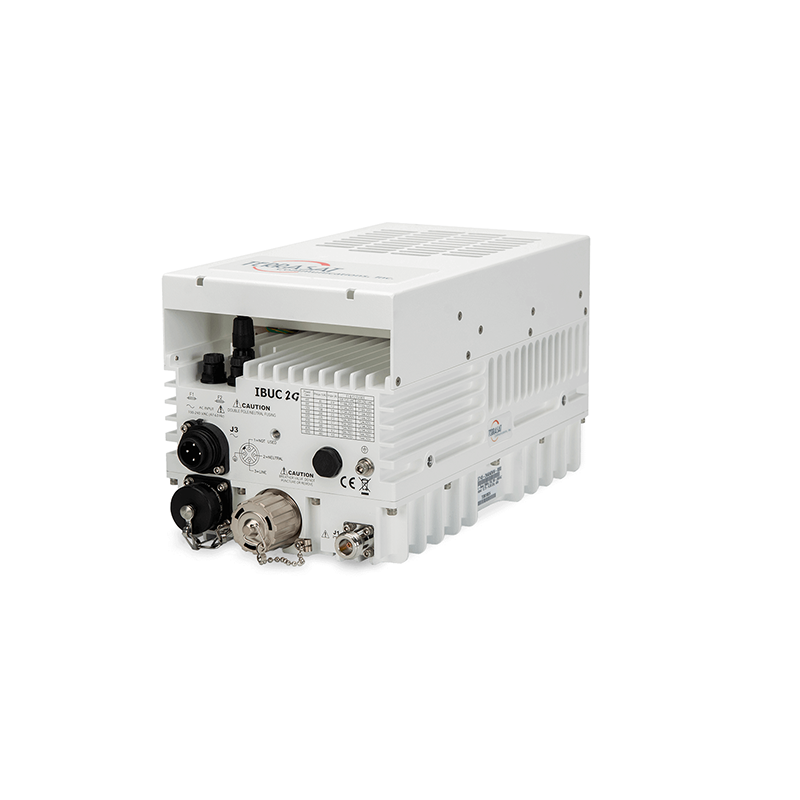

Terrasat IBUC 2G Ka-Band Dual-Band BUC (5W–50W)

Software-Selectable Dual-Band GaN Ka-Band Intelligent Block Upconverter for Multicarrier Applications

The Terrasat IBUC 2G Ka-Band Dual-Band (5W to 50W) is a compact, high-efficiency GaN-based intelligent block upconverter designed for multiband, multicarrier Ka-Band satellite uplinks. Featuring two software-selectable sub-bands, this model provides flexible RF and IF configuration without hardware changes.

Engineered for telecom, government, defense, and mobility SATCOM systems, the Dual-Band IBUC 2G combines Gallium Nitride amplifier efficiency with advanced monitoring and optional Cyber Hardened security features.

Esatcom Inc. supplies fully configured units tailored to your power level, RF plan, IF interface, and security requirements.

Frequency Coverage – Dual-Band Software Selectable

Two Software-Selectable Sub-Bands

RF: 29.0 – 30.0 GHz
RF: 30.0 – 31.0 GHz
✔ Any RF can be software selected with any IF

Local Oscillator:

Sub-Band 1: 28.0 GHz
Sub-Band 2: 29.0 GHz
Spectral sense: Non-Inverting

Monitor & Control

Standard Version

Ethernet (HTTP, Telnet, SNMPv2c)
RS232/485 via MS-Type connector
Handheld terminal support

Cyber Hardened Version

HTTPS, SSHv2
Selectable SNMP V1, V2, V3 (USM & VACM)
FIPS 140-2 compatible

Dual NTP servers

XSS protection

Enhanced controller board & firmware

Ordering & Configuration

Configurable parameters include:

Output power

AC or DC powered

IF connector type

10 MHz Reference

Standard or Cyber Hardened M&C

WGS compatibility option

Color options

Contact Esatcom Inc. to confirm the correct part number before ordering.
