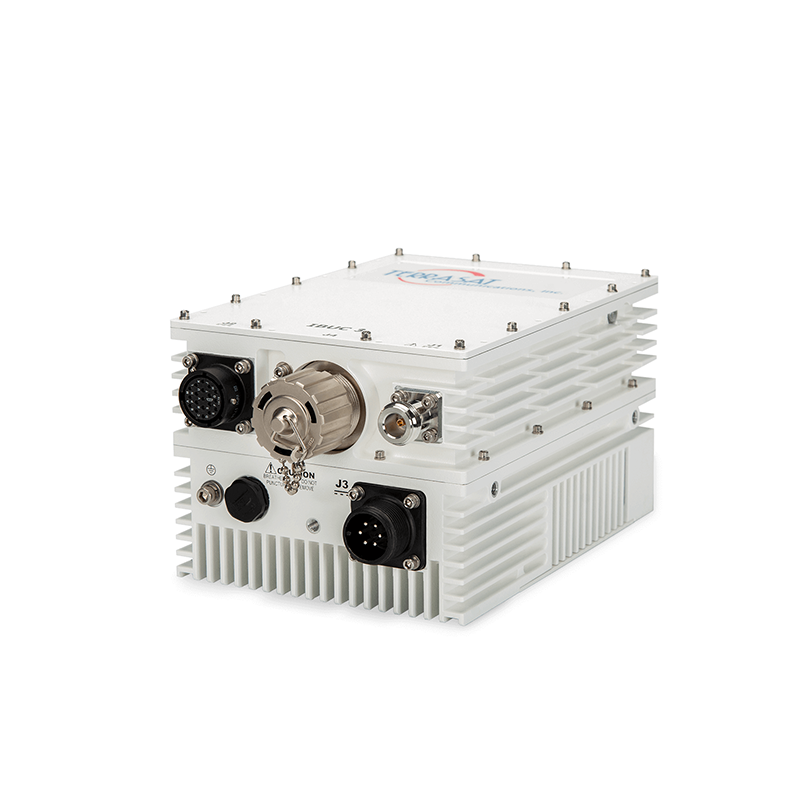

Terrasat IBUC 3G Ku-Band GaN BUC (25W–40W)

Compact High-Efficiency GaN Ku-Band Block Upconverter for Multi-Carrier Mobility Applications

The Terrasat IBUC 3G Ku-Band is a compact, high-efficiency GaN-based intelligent block upconverter designed for demanding multi-carrier uplinks in mobility and small-antenna SATCOM systems. Available in 25W, 30W, and 40W output levels, the IBUC 3G delivers higher power in a small, lightweight enclosure using advanced Gallium Nitride (GaN) amplifier technology.

Engineered for mobility platforms, flat-panel antennas, transportable terminals, and compact VSAT systems, the IBUC 3G combines strong linear performance, reduced power consumption, and full-feature intelligent monitoring.

Esatcom Inc. supplies factory-configured IBUC 3G units tailored to your frequency plan, reference stability, and network requirements.

Why Choose the IBUC 3G?

GaN amplifier technology for improved efficiency
Higher power in compact form factor
Multi-carrier optimized performance
Lightweight design: approx. 6.5 lbs (3 kg)
Compact size: 7 × 5 × 4 in
Ideal for mobility and small aperture antennas
Integrated intelligent Monitor & Control

Positioned between the IBUC 3 (8W–16W) and larger high-power Ku-band platforms.

Available Output Power Options

25W Ku-Band GaN BUC
30W Ku-Band GaN BUC
40W Ku-Band GaN BUC

Linear output per MIL-STD-188-164C definition.

Ku-Band Frequency Coverage

Factory-selectable RF frequency plans:

14.000–14.500 GHz (Standard Ku-Band)
13.750–14.500 GHz (Full Ku-Band)

12.750–13.250 GHz (Low Ku-Band)

IF Range:

950–1450 MHz (Std & Low Ku)
950–1700 MHz (Full Ku)

Non-inverting spectral sense only.

Power & Efficiency

DC input: 38–76 VDC
Power consumption (approx. at PLin / PSat):
    25W: 150 W / 205 W
    30W: 180 W / 235 W
    40W: 205 W / 265 W

Improved power efficiency compared to legacy GaAs designs.

Monitor & Control

Standard Version

Ethernet (HTTP, Telnet, SNMPv2c) via RJ45
RS-232 / RS-485
FSK multiplexed on TX IFL

Cyber Hardened Version (Optional)

HTTPS, SSHv2, SNMPv3
FIPS 140-2 compatible
Dual NTP redundancy
Enhanced cybersecurity controller board

Suitable for secure government and defense SATCOM systems.

Environmental & Mechanical

Operating temperature: −40°C to +55°C
100% condensing humidity
Altitude: 10,000 ft (3,000 m)
Weight: approx. 6.5 lbs (3 kg)
Size: 7 × 5 × 4 in (178 × 127 × 102 mm)

Designed for rugged mobile environments.

Ordering & Configuration

Configurable parameters include:

Output power (25W / 30W / 40W)
RF frequency plan
IF connector type
10 MHz reference (external / internal standard / high stability)
WGS compatibility
Standard or Cyber Hardened M&C

Contact Esatcom Inc. to confirm correct configuration and part number before ordering.
