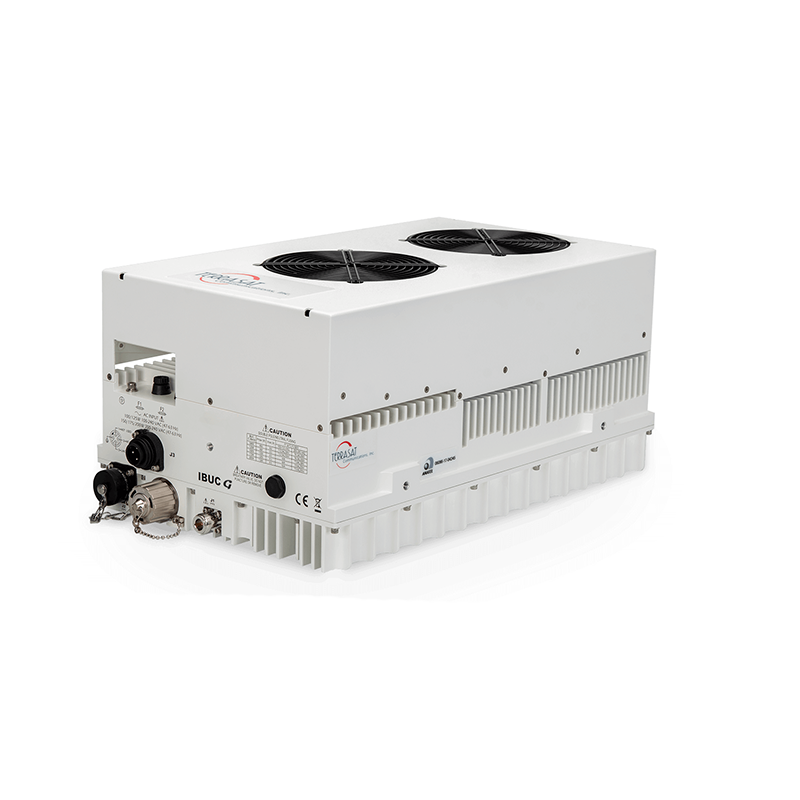

Terrasat IBUC G X-Band 200W GaN BUC

200W High-Efficiency GaN X-Band Intelligent Block Upconverter for Multi-Carrier Defense Uplinks

The Terrasat IBUC G X-Band 200W is a high-power, high-efficiency GaN-based intelligent block upconverter (BUC) engineered for demanding multi-carrier defense and government SATCOM uplinks. Delivering up to +53 dBm saturated output power, this compact antenna-mount amplifier provides excellent linearity, strong NPR performance, and advanced cyber-secure monitoring capabilities.

Designed for tactical, transportable, maritime, and fixed X-Band terminals, the 200W IBUC G combines Gallium Nitride efficiency with Terrasat’s intelligent management platform.

Esatcom Inc. supplies factory-configured IBUC G X-Band 200W units tailored to your reference, connector, and security requirements.

Why Choose the IBUC G 200W?

GaN amplifier technology for improved power efficiency
+53 dBm typ. PSat output power
+50 dBm minimum linear power (MIL-STD-188-164C defined)
19 dB minimum NPR at +47 dBm
84 dB minimum small signal gain (standard version)
AC powered (100–240 VAC)
Cyber Hardened version available
Compact antenna-mount enclosure

Positioned above the 100W IBUC-2G and ideal for high-capacity multi-carrier X-Band uplinks.

Frequency Coverage

RF Frequency: 7.900–8.400 GHz
IF Frequency: 950–1450 MHz
Local Oscillator: 6950 MHz
Spectral sense: Non-inverting

Monitor & Control

Standard Version

Ethernet (HTTP, Telnet, SNMPv2c) via RJ45
RS232/485 via MS-Type connector
FSK multiplexed on TX IFL
Embedded web interface

Cyber Hardened Version

HTTPS, SSHv2, SNMPv3 (USM & VACM)
FIPS 140-2 compatible
Two NTP servers (redundancy)
XSS protection
Enhanced controller board & firmware

Ideal for secure military and government SATCOM networks.

Ordering & Configuration

Configurable parameters include:

Standard or Cyber Hardened M&C

WGS compatibility option

IF connector type
10 MHz reference
Color options

Optional external waveguide Rx reject filter

1+1 transmit redundancy with Eco-Mode

Contact Esatcom Inc. to confirm the correct part number before ordering.
