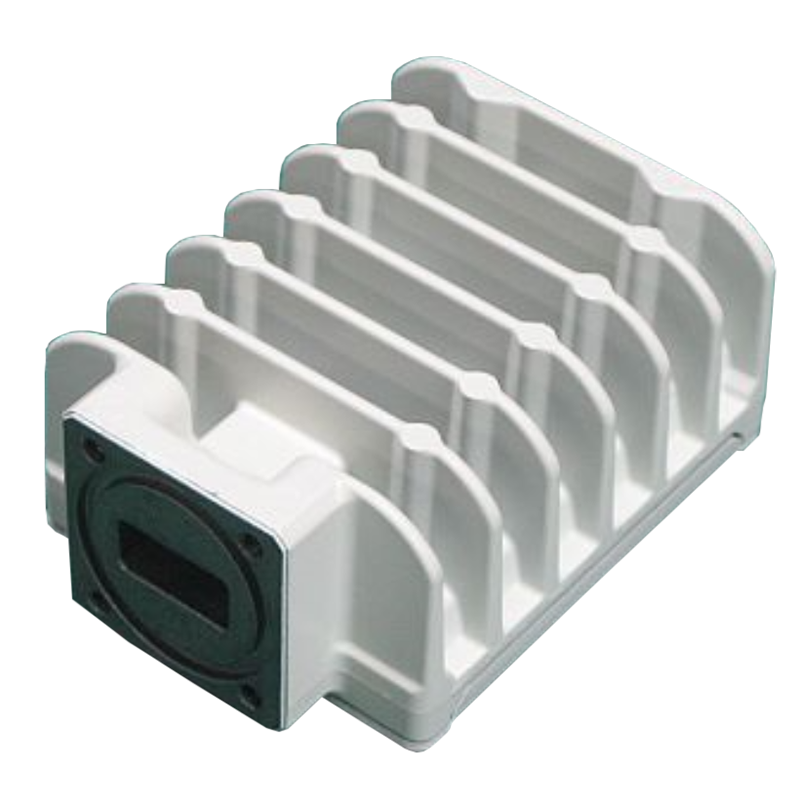

Nisshinbo NJT8302N Ku-band 14.0 - 14.5 GHz 3W BUC

The NJT8302N is a compact and high-performance Ku-band 3W BUC (Block Upconverter) designed for VSAT uplink applications. It operates over 14.0–14.5 GHz (universal Ku-band) with a 13.05 GHz local oscillator, converting L-band IF signals (950–1450 MHz) to RF for reliable satellite transmission. With +34 dBm output power, stable gain, and support for external 10 MHz reference, it ensures consistent uplink performance in broadband and enterprise satellite systems.

Key Specifications

RF Frequency: 14.0 – 14.5 GHz (Universal Ku-band)

IF Frequency: 950 – 1450 MHz

Local Oscillator: 13.05 GHz

Output Power: +34 dBm (3W) min.of P1dB

Gain: 55 dB typ., 51 dB min.

Noise Figure: 18 dB nom.,23 dB max.

External Reference: 10 MHz (optional input)

Input Interface: N-type female (50Ω)

Output Interface: WR-75 waveguide

DC Power: +12 to +30 VDC

Mechanical & Environmental

Waveguide Output: WR-75 (grooved)

Dimensions: 91.6 × 68 × 42.5 mm

Weight: ~350 g

Operating Temperature: -40°C to +55°C

Waterproof: IP67

Applications

VSAT uplink systems

Broadband satellite terminals

Enterprise and telecom networks

Remote communication systems
