iDirect Universal Ku-Band 3W BUC
⚠️ End of Life Notice
The model is end-of-life (EOL) and has been replaced by the NJT8302UF.
Security policy
Delivery policy
Return policy

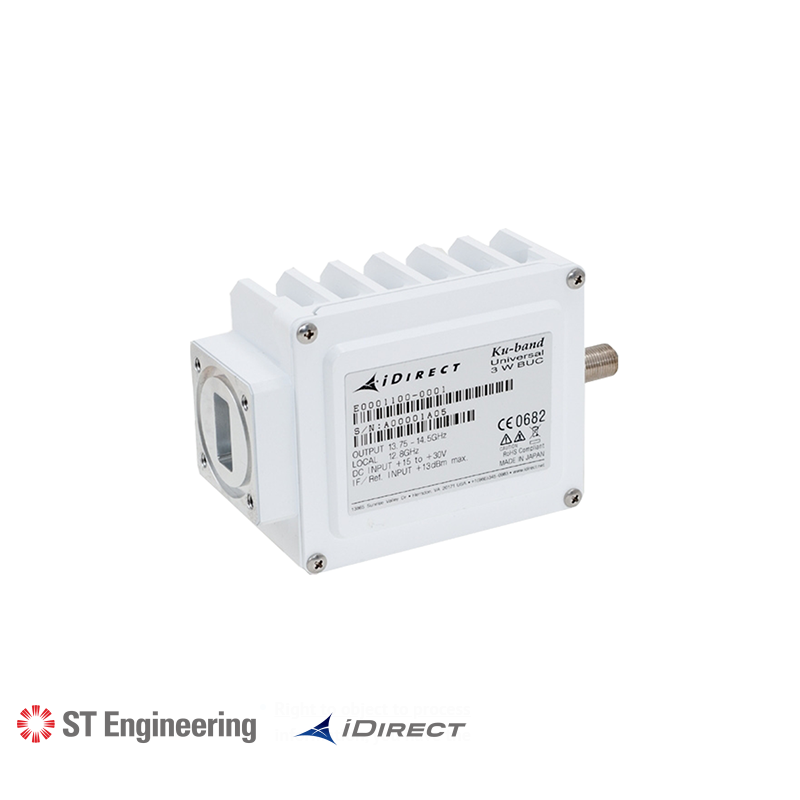

iDirect 3W Universal Ku-Band BUC
The iDirect 3W Universal Ku-Band BUC is a high-performance block upconverter designed for VSAT uplink applications requiring higher transmit power.
It offers improved output power and gain while maintaining a compact and energy-efficient design, fully compatible with iDirect Evolution and iNFINITI platforms.
Key Features
Higher output power for improved link performance
Ku-band operation (13.75 – 14.5 GHz)
Compatible with iDirect Evolution & iNFINITI systems
Compact outdoor unit design
High efficiency and thermal stability
Reliable operation in harsh environments
Key Specifications
Output Power: +34.5 dBm (3W)
Frequency: 13.75 – 14.5 GHz (Tx)
Input Frequency: 950 – 1700 MHz
Gain: 58 dB typical
Power Consumption: ≤ 22W typical
Power Supply: +24 VDC
Operating Temp: -40°C to +55°C
Interface: F-type input, WR75 waveguide output
Applications
VSAT uplink systems
Enterprise and carrier networks
Mobility and maritime communications
Government and defense networks
High reliability satellite links
iDirect 3W BUC
- Transmit Band
- 13.75 - 14.50 GHz
- Power Output
- 3W
Specific References
⚠️ End of Life Notice
The model is end-of-life (EOL) and has been replaced by the NJT8302UF.
