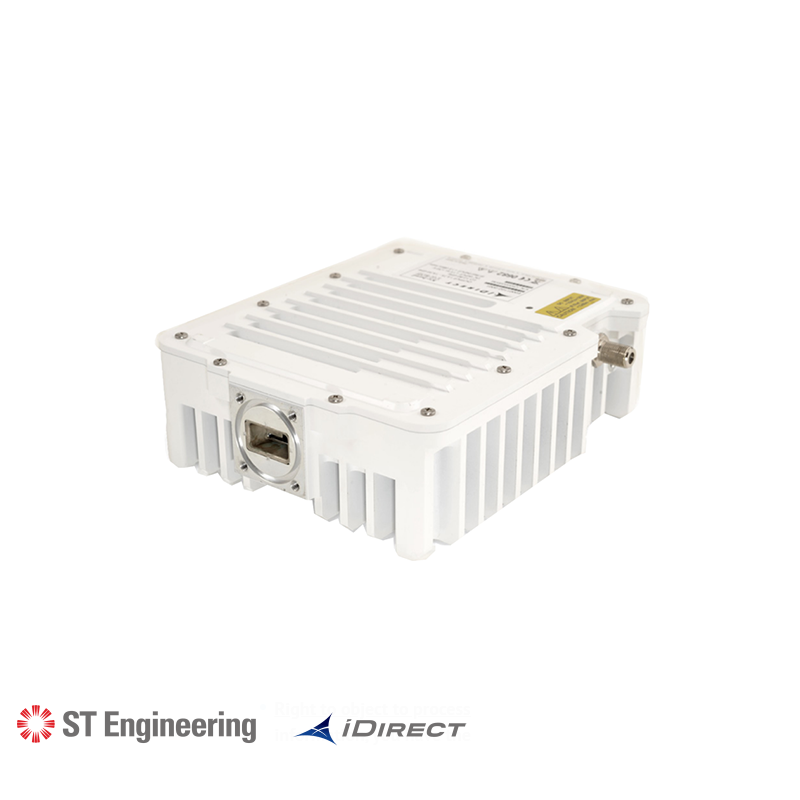

iDirect 4W Universal Ku-Band BUC
The iDirect 4W Universal Ku-Band BUC is a high-performance block upconverter designed for VSAT uplink applications requiring higher transmit power and improved link reliability.
Supporting both standard and extended Ku-band frequencies, this BUC is ideal for deployments in challenging environments such as regions with heavy rain fade or networks requiring higher throughput.
Key Features
4W output power for stronger uplink performance
Ku-band operation (13.75 – 14.5 GHz)
Compatible with iDirect Evolution and Velocity platforms
High gain and efficiency design
Reliable operation in harsh environments
LED status indicator for quick diagnostics
Key Specifications
Output Power: +36 dBm (4W)
Frequency: 13.75 – 14.5 GHz (Tx)
Input Frequency: 950 – 1700 MHz
Gain: 62 dB typical
Power Consumption: ≤ 37W
Power Supply: +24 VDC
Operating Temp: -40°C to +55°C
Interface: F-type input, WR75 waveguide output
Applications
High-performance VSAT uplink systems
Enterprise and carrier networks
Mobility and maritime communications
Government and defense communications
Regions with heavy rain fade
iDirect 4W BUC
- Transmit Band
- 13.75 - 14.50 GHz
- Power Output
- 4W
