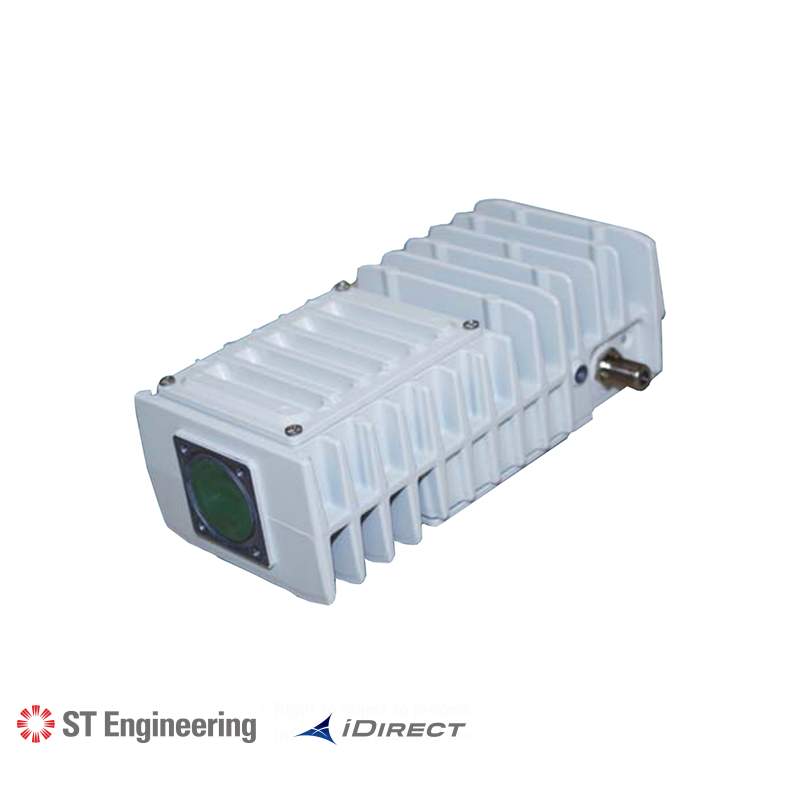

iDirect 6W Universal Ku-Band BUC
The iDirect 6W Universal Ku-Band BUC is a mid-power, high-efficiency block upconverter designed for VSAT uplink applications requiring stronger transmission and improved link stability.
Built on the proven iDirect BUC platform, it supports standard and extended Ku-band frequencies and offers a compact design with enhanced power output, making it ideal for enterprise and mobility deployments.
Key Features
6W output power for improved uplink performance
Ku-band operation (13.75 – 14.5 GHz)
Compatible with iDirect Evolution and Velocity platforms
Compact and lightweight mid-power design
High efficiency and thermal stability
LED status indicator for quick diagnostics
Can be powered directly by iDirect remotes
Key Specifications
Output Power: +37.8 dBm (6W)
Frequency: 13.75 – 14.5 GHz (Tx)
Input Frequency: 950 – 1700 MHz
Gain: 62 dB typical
Power Consumption: 40W typical / 48W max
Power Supply: +24 VDC
Operating Temp: -40°C to +60°C
Interface: F-type input, WR75 waveguide output
Protection: IP67 rated (with proper installation)
Applications
High-reliability VSAT uplink systems
Enterprise and carrier networks
Mobility and maritime communications
Government and defense communications
Harsh environment deployments
iDirect 6W BUC
- Transmit Band
- 13.75 - 14.50 GHz
- Power Output
- 6W
