Actox ABE2XC / ABE2XCF
Full C-band 2W mini-BUC
• RF Frequency: 5.85 to 7.025 GHz
• IF Frequency: 950 to 1825 MHz
• Double LO: Switchable 4.9 & 5.2 GHz
• IF Connector: N (50Ω) or F type (75Ω)
• Output Power: +33 dBm min.
Security policy
Delivery policy
Return policy

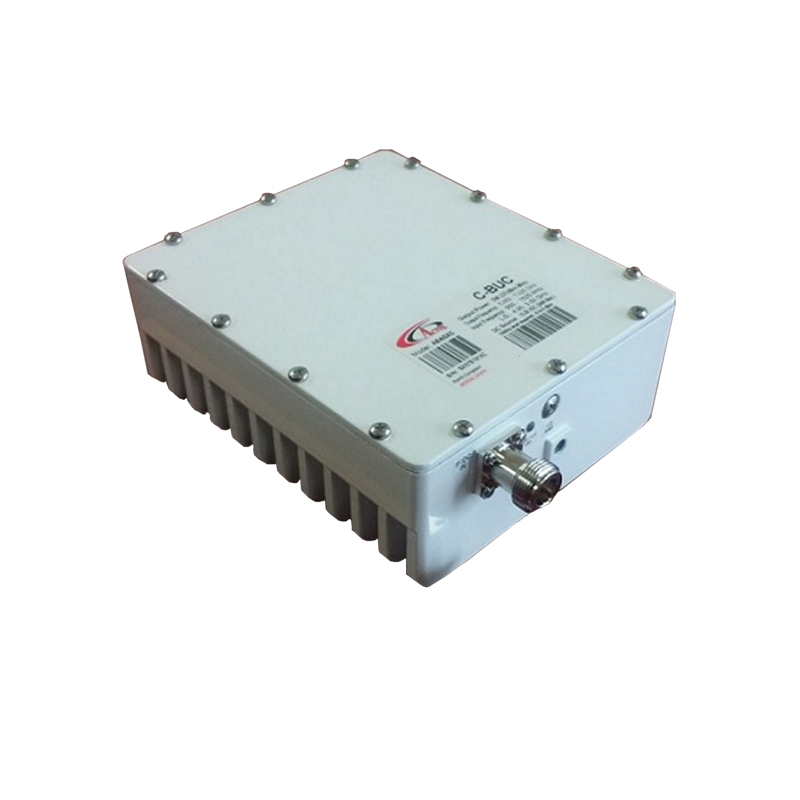

Actox ABE2XC / ABE2XCF – 2W Full 5.85–7.025 GHz C-Band BUC
The Actox ABE2XC / ABE2XCF is a compact 2W GaN-based C-Band Block Up Converter designed for feed horn mounting in VSAT and satellite uplink applications. Covering Standard, Palapa, and Insat C-Band frequencies, this high-efficiency BUC features dual switchable local oscillators, ultra-low power consumption, auto-ranging DC input, and optional internal 10 MHz reference for reliable satellite communication performance.
Key Features
RF Frequency: 5.850 – 7.025 GHz
Output Power: 2W (+33 dBm min.)
Dual L.O.: 4.90 GHz / 5.20 GHz switchable
IF Frequency: 950 – 1825 MHz
GaN technology for high efficiency and reliability
Low power consumption: 15W max.
Auto-ranging power input: +15 to +60 VDC
IF Connector: N-type or F-type (field-exchangeable)
Built-in redundancy option
Optional internal 10 MHz high stability reference
CPR137G waveguide output
IP67 weatherproof housing
MIL-STD-810E vibration and shock compliant
Operating temperature: -40°C to +55°C
Weight: 1 kg max.
RoHS compliant
Three-year warranty
Mechanical & Environmental
Compact feed-mount design
Dimensions: 140 × 120 × 52.5 mm
Weight: 1 kg max.
Altitude: Up to 23,000 feet
Vibration/Shock: MIL-STD-810E compliant
IP67 outdoor-rated enclosure
Applications
VSAT uplink systems
Broadcast uplinks
Teleport infrastructure
Remote satellite communication terminals
Government and military SATCOM systems
ABE2XC, ABE2XCF
- Transmit Band
- 5.850 - 7.025 GHz
- Power Output
- 2W
