Actox ABE10XC / ABE10XCF
Full C-band 10W BUC
• RF Frequency: 5.85 to 7.025 GHz
• IF Frequency: 950 to 1825 MHz
• Double LO: Switchable 4.9 & 5.2 GHz
• IF Connector: N (50Ω) or F type (75Ω)
• Output Power: +40 dBm min.
Security policy
Delivery policy
Return policy

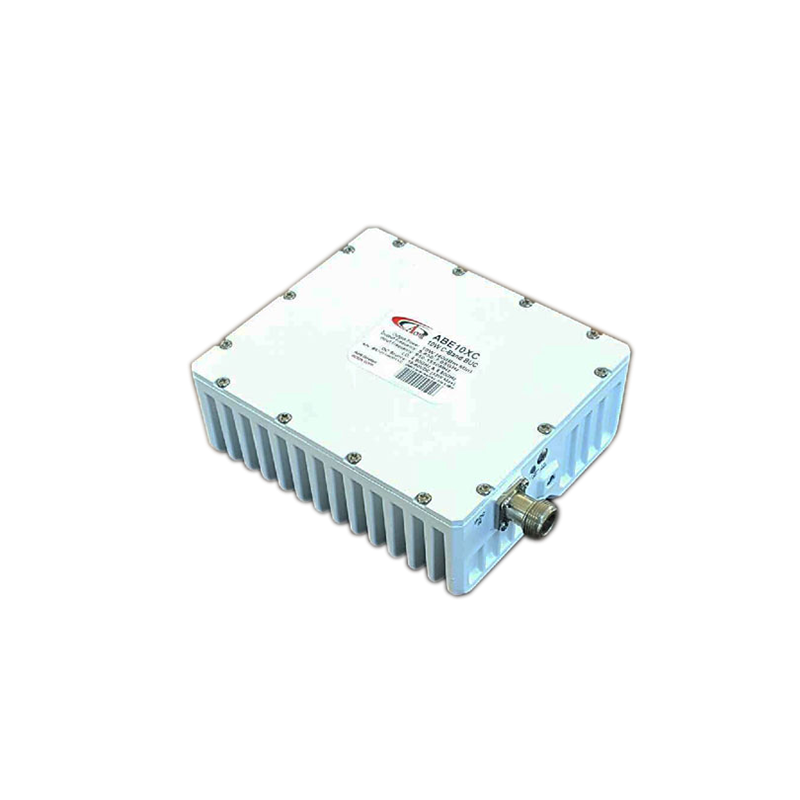

Actox ABE10XC / ABE10XCF – 10W Full 5.85–7.025 GHz C-Band BUC
This smallest and lightest 10W L-To C-Band Block Up Converter is based on GaN technology. It is designed to be mounted on the feed horn. High power efficiency resulting in the low current (<1.5 amps @ 24VDC). The unit covers all three C-Band sub-bands: Standard (5.85-6.425 GHz), Palapa (6.365-6.725 GHz) and Insat (6.725-7.025 GHz).
Key Features
RF Frequency: 5.85 – 7.025 GHz
Output Power: 10W (+40 dBm min.)
Dual local oscillator : 4.9 and 5.2 GHz
IF Frequency: 950 – 1825 MHz
GaN technology for high efficiency and reliability
Incomparable low power consumption (33W max)
Auto-ranging power input: +15 to +60 VDC
Digital temperature compensation
L.O. lock and amplifier LEDs
Field-exchangeable (F/N) IF connector
Built-in redundancy option
Optional internal 10 MHz high stability reference
RoHS compliant
Three-year warranty
Mechanical & Environmental
Compact feed-mount design
Dimensions: 140 × 120 × 52.5 mm
Weight: 1.0 kg max.
Vibration/Shock: MIL-STD-810E compliant
IP67 outdoor-rated enclosure
Operating temperature: -40°C to +55°C
Applications
VSAT uplink systems
Broadcast uplinks
Teleport infrastructure
Remote satellite communication terminals
Government and military SATCOM systems
ABE10XC, ABE10XCF
- Transmit Band
- 5.850 - 7.050 GHz
- Power Output
- 10W
