Actox ABE20DC / ABE20DCF
Extended C-band 20W Fanless BUC
• RF Frequency: 5.85 to 6.725 GHz
• IF Frequency: 950 to 1825 MHz
• Local Frequency 4.90 GHz
• IF Connector: N (50Ω) or F type (75Ω)
• Output Power: +43 dBm min.
Security policy
Delivery policy
Return policy

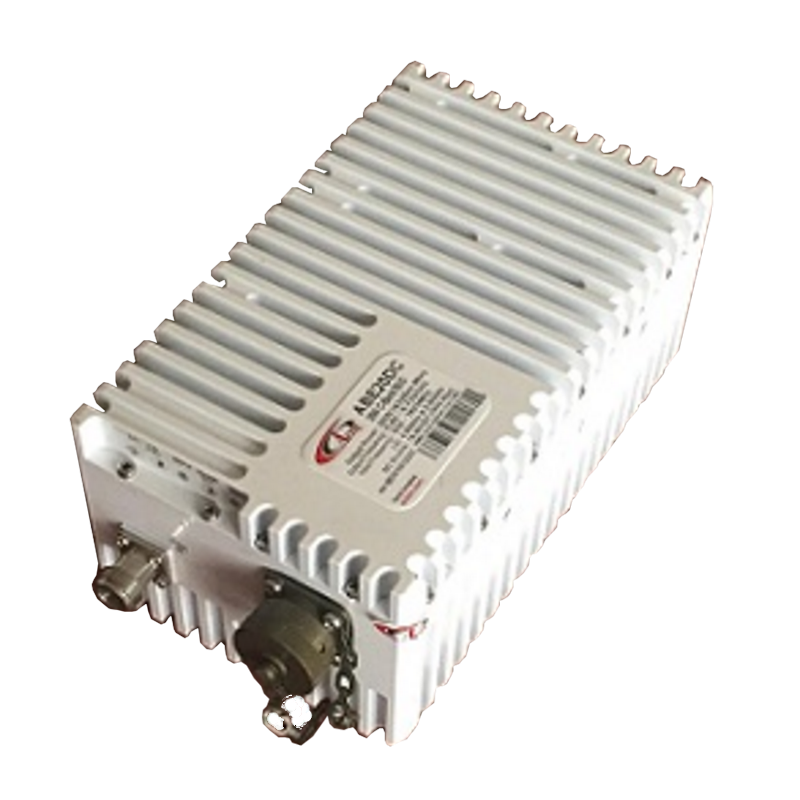

Actox ABE20DC / ABE20DCF – 20W Extended 5.85–6.725 GHz C-Band Fanless BUC
This smallest and lightest fanless 20W L-To C-Band Block Up Converter is based on GaN technology. It is designed to be mounted on the feed horn. The unit covers C-Band sub-bands: Standard (5.850-6.425 GHz) and Palapa(6.365-6.725 GHz).
Key Features
RF Frequency: 5.85 – 6.725 GHz
Output Power: 20W (+43 dBm min.),P-Linear 11.2W (40.49 dBm min.)
Local oscillator: 4.90 GHz
IF Frequency: 950 – 1825 MHz
GaN technology for high efficiency and reliability
Incomparable low power consumption (75W max)
Optional M&C - combined RS-232/485 / Ethernet (HTTP and SNMP ver. 2 & 3)/FSK (optional)
Auto-ranging power input: +15 to +60 VDC
Digital temperature compensation
Power and lock status LED
Field-exchangeable (F/N) IF connector
Built-in redundancy option
Optional internal 10 MHz high stability reference
RoHS compliant
Three-year warranty
Mechanical & Environmental
Compact feed-mount design
Dimensions: 195 × 120 × 87 mm
Weight: 2.76 kg max.
Vibration/Shock: MIL-STD-810E compliant
IP67 outdoor-rated enclosure
Operating temperature: -40°C to +55°C
Applications
VSAT uplink systems
Broadcast uplinks
Teleport infrastructure
Remote satellite communication terminals
Government and military SATCOM systems
ABE20DC, ABE20DCF
- Transmit Band
- 5.850 - 6.725 GHz
- Power Output
- 20W
Specific References
Extended C-band 20W Fanless BUC
• RF Frequency: 5.85 to 6.725 GHz
• IF Frequency: 950 to 1825 MHz
• Local Frequency 4.90 GHz
• IF Connector: N (50Ω) or F type (75Ω)
• Output Power: +43 dBm min.
