Actox ABD200DC / ABD200DC

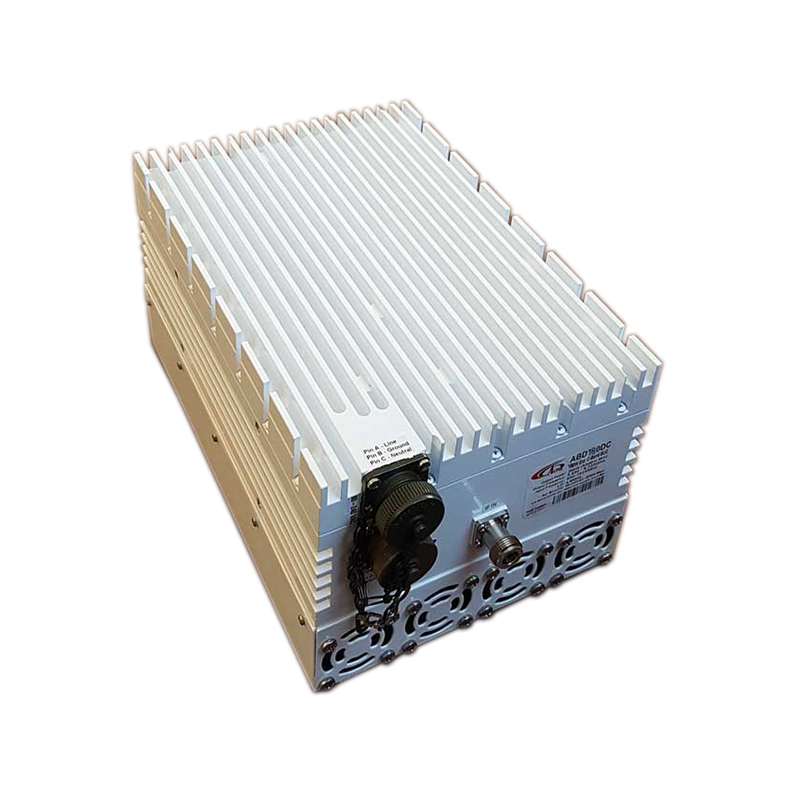

Actox ABD200DC / ABD200DCF  – 200W Extended 5.85–6.725 GHz C-Band BUC

This is a unique Ext. C-Band (5.850-6.725 GHz) 200W Block Up Converter powered with auto-ranging 80-240 VAC unit, designed for mobile applications especially when an earth station needs to be able to use different C-Band: Standard (5.850-6.425 GHz) and Palapa (6.365- 6.725 GHz) transponders or satellites.

Key Features

RF Frequency: 5.85 – 6.725 GHz

Output Power: 200W (+53 dBm min.), P-Linear 110W (+50.41 dBm min.)

Local oscillator: 4.90 GHz

IF Frequency: 950 – 1825 MHz

GaN technology for high efficiency and reliability

Incomparable low power consumption (900W max)

Auto-ranging powering option 80 - 240 VAC

Digital temperature compensation

Power and lock status LED

Field-exchangeable (F/N) IF connector

Built-in redundancy option

Internal auto-sensing and controllable 10MHz high stability reference (optional)

Advanced M&C - combined RS-232/485 / Ethernet (HTTP and SNMP ver. 2 & 3) / FSK (optional)

Special Feature: Chinese GUI (optional)

Mechanical & Environmental

Dimensions: 260 × 180 × 142.5 mm

Weight: 5.2 kg max.

Vibration/Shock: MIL-STD-810E compliant

IP67 outdoor-rated enclosure

Operating temperature: -40°C to +55°C

Applications

VSAT uplink systems

Broadcast uplinks

Teleport infrastructure

Remote satellite communication terminals

Government and military SATCOM systems
