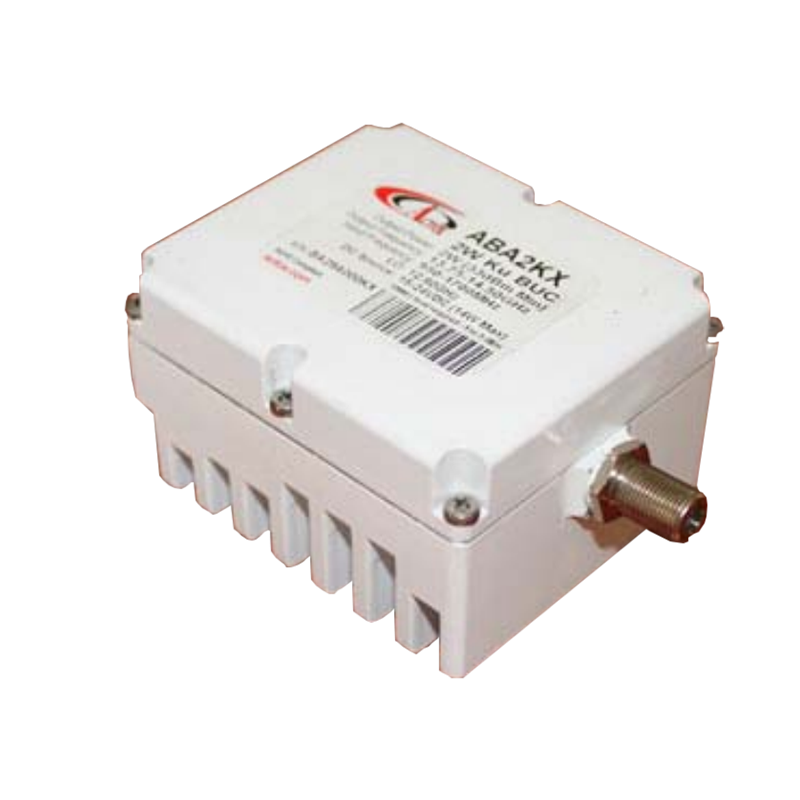

Actox ABA2KX / ABA2KXF

Actox ABA2KX / ABA2KXF   – 2W Extended 13.75–14.5 GHz Ku-Band BUC

This smallest and lightest 2W L-To Ku-Band Block Up Converter is based on GaAs technology and is designed to be mounted directly on the feed horn. High power efficiency resulting in low current (<1 amps) consumption allows users to pass DC supply voltage via IF cable. The unit is ideal for network and point to point, data distribution, portable and emergency applications.

Key Features

RF Frequency: 13.75 – 14.5 GHz

Output Power: 2W (+33 dBm min.), P-Linear 1.2W (+30.8 dBm min.)

Local Oscillator: 12.8 GHz

IF Frequency: 950 – 1700 MHz

Based on GaAs technology which enables high efficiency, low power consumption and high reliability

Industry’s lowest power consumption (14W max.)

Smallest package size and weight

Powered through IF cable

High power efficiency (2W min.)

RoHS compliant

Mechanical & Environmental

Dimensions: 100.5 × 68 × 46 mm

Weight: 0.45 kg max.

Vibration/Shock: MIL-STD-810E compliant

IP67 outdoor-rated enclosure

Operating temperature: -40°C to +55°C

Applications

VSAT uplink systems

Broadcast uplinks

Teleport infrastructure

Remote satellite communication terminals

Government and military SATCOM systems
