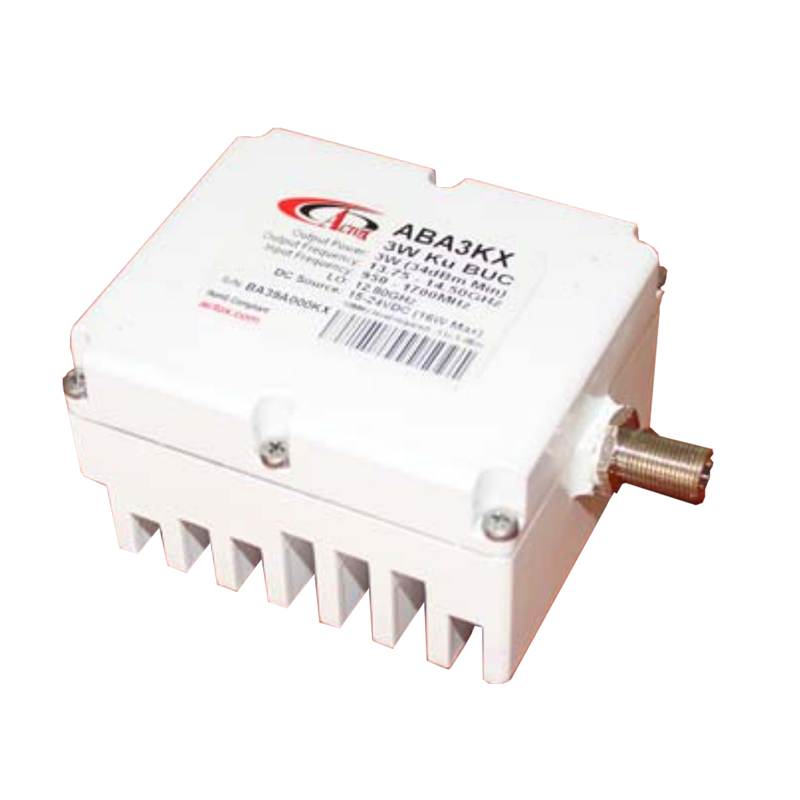

Actox ABA3KX / ABA3KXF
Extended Ku-band 3W mini-BUC
• RF Frequency: 13.75 to 14.5 GHz
• IF Frequency: 950 to 1700 MHz
• LO Frequency: 12.8 GHz
• IF Connector: N (50Ω) or F type (75Ω)
• Output Power: +35 dBm min.
Security policy
Delivery policy
Return policy
Actox ABA3KX / ABA3KXF – 3W Extended 13.75–14.5 GHz Ku-Band BUC
This smallest and lightest 3W L-To Ku-Band Block Up Converter is based on GaN technology and is designed to be mounted directly on the feed horn. High power efficiency resulting in low current (<1 amps) consumption allows users to pass DC supply voltage via IF cable. The unit is ideal for network and point to point, data distribution, portable and emergency applications.
Key Features
RF Frequency: 13.75 – 14.5 GHz
Output Power: 3W (+35 dBm min.), P-Linear 1.6W (+32 dBm min.)
Local Oscillator: 12.8 GHz
IF Frequency: 950 – 1700 MHz
GaN technology for high efficiency and reliability
Industry’s lowest power consumption (16W max.)
Smallest package size and weight
Powered through IF cable
High power efficiency (3W min.)
RoHS compliant
Mechanical & Environmental
Dimensions: 100.5 × 68 × 46 mm
Weight: 0.45 kg max.
Vibration/Shock: MIL-STD-810E compliant
IP67 outdoor-rated enclosure
Operating temperature: -40°C to +55°C
Applications
VSAT uplink systems
Broadcast uplinks
Teleport infrastructure
Remote satellite communication terminals
Government and military SATCOM systems
ABA3KX, ABA3KXF
- Transmit Band
- 13.75 - 14.50 GHz
- Power Output
- 3W
Specific References
Extended Ku-band 3W mini-BUC
• RF Frequency: 13.75 to 14.5 GHz
• IF Frequency: 950 to 1700 MHz
• LO Frequency: 12.8 GHz
• IF Connector: N (50Ω) or F type (75Ω)
• Output Power: +35 dBm min.
