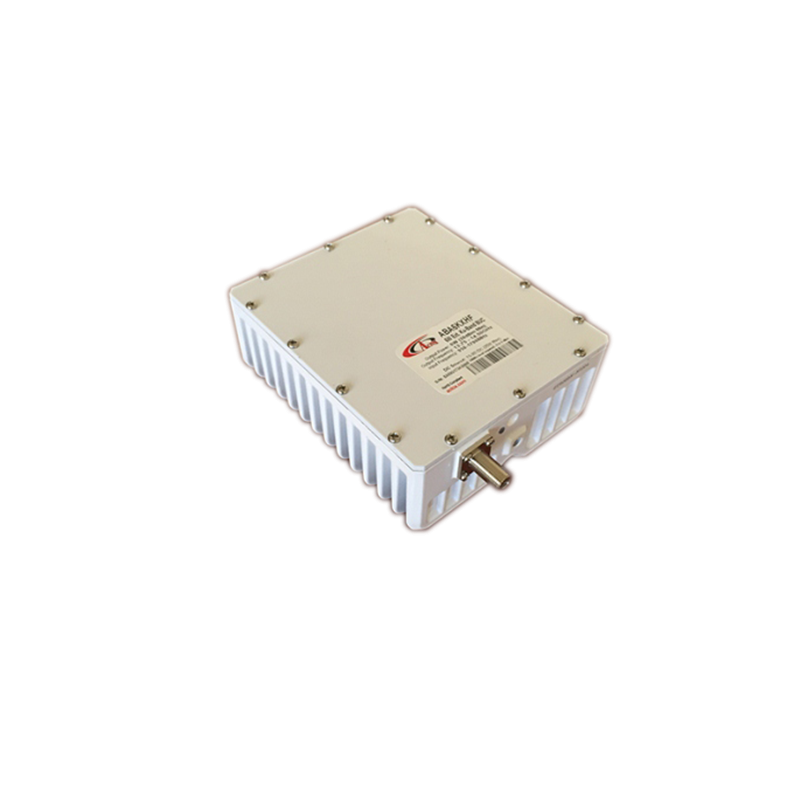

Actox ABE6KXH / ABE6KXHF

Actox ABE6KXH / ABE6KXHF – 6W Extended 13.75–14.5 GHz Ku-Band Mini BUC

This smallest and lightest 6W L-To Ku-Band Block Up Converter is based on GaN technology. Double L.O. and field-exchangeable connectors make the unit universal for any Ku-Band application. Incomparable low power consumption allows the BUC to be powered by iDirect and similar modems. Internal 10MHz reference option enables using the BUC with the modems without 10MHz reference.

Key Features

RF Frequency: 13.75 – 14.5 GHz

Output Power: 6W (+38 dBm min)

Double L.O. (switchable 12.80 & 13.05 GHz)

IF Frequency: 950 – 1700 MHz

GaN technology for high efficiency and reliability

Incomparable low power consumption (35W max.) - can be powered by some iDirect or similar modems

Extreme P-Out GaN linearity

Auto-ranging powering option 15 - 60 VDC

Digital temperature compensation

Field-exchangeable (F/N) IF connector

L.O. lock and amplifier LEDs

Internal 10MHz high stability reference (optional)

RoHS compliant

Mechanical & Environmental

Dimensions: 140 × 120 × 52.5 mm

Weight: 1.3 kg max.

Vibration/Shock: MIL-STD-810E compliant

IP67 outdoor-rated enclosure

Operating temperature: -40°C to +55°C

Applications

VSAT uplink systems

Broadcast uplinks

Teleport infrastructure

Remote satellite communication terminals

Government and military SATCOM systems
