Nisshinbo NJT8105N

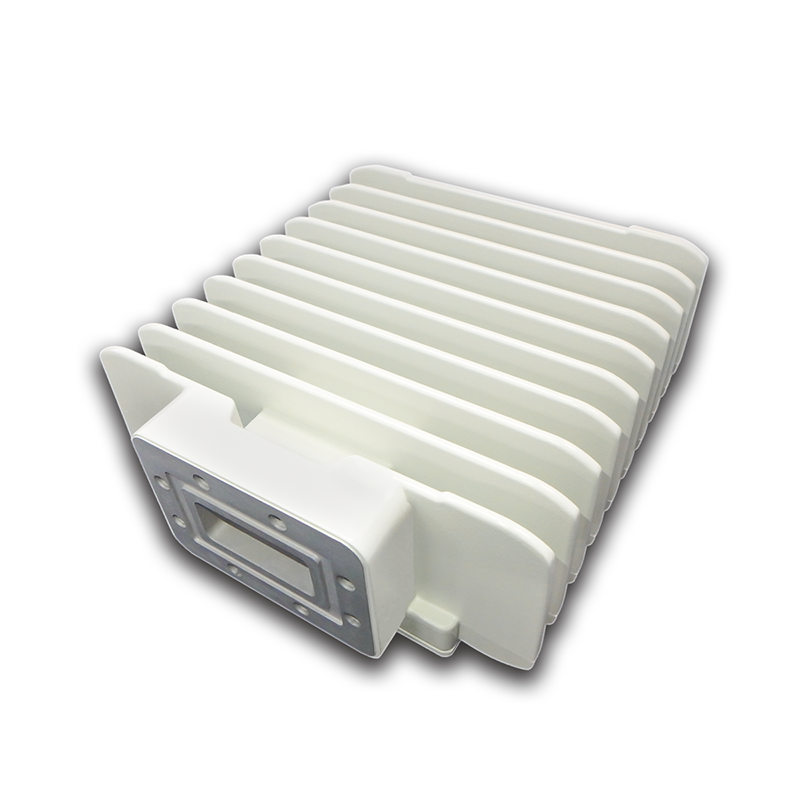

Nisshinbo NJT8105N Standard C-band 5W mini-BUC

The NJT8105N is a compact and high-performance C-band 5W BUC (Block Upconverter) designed for VSAT uplink applications. It operates over 5.85–6.425 GHz (standard C-band) with a 4.9 GHz local oscillator, converting L-band IF signals (950–1525 MHz) to RF for reliable satellite transmission. With P1dB output power +37 dBm, stable gain, and support for external 10 MHz reference, it ensures consistent uplink performance in broadband and enterprise satellite systems.

Key Specifications

RF Frequency: 5.85 – 6.425 GHz (Standard C-band)

IF Frequency: 950 – 1525 MHz

Local Oscillator: 4.9 GHz

P1dB Output Power: +37 dBm min. over temperature (@ 1dB G.C.P.)

ACPR: -26 dBc typ. @ Pout = +37 dBm

Linear Gain : 62 dB nom., 56 dB min.

IF Input Interface: N-type female (50Ω)

RF Output Interface: Waveguide, CPR137 (with Groove)

Input Power Voltage Requirement : +24 VDC (+12 to +30 VDC)

Mechanical & Environmental

Waveguide Output: CPR137 (with Groove)

Dimensions: 149.1 × 134 × 57 mm

Weight: 1.37 kg

Operating Temperature: -40°C to +60°C

Waterproof: IP67

Applications

VSAT uplink systems

Broadband satellite terminals

Enterprise and telecom networks

Remote communication systems
