Nisshinbo NJT5764NM

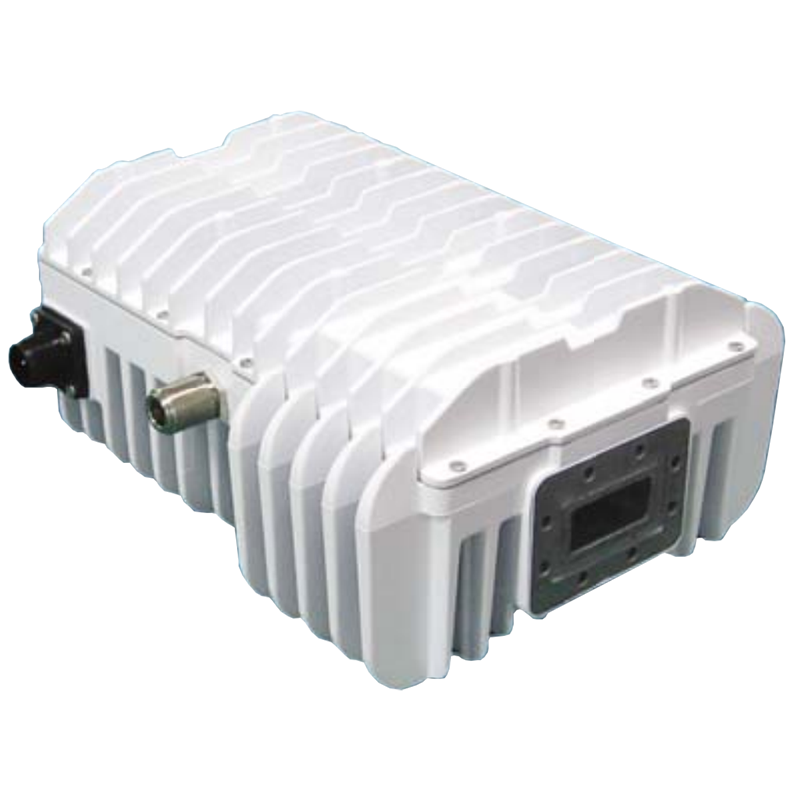

Nisshinbo NJT5764NM Insat C-band 10W BUC

The NJT5764NM is a high-performance C-band 10W BUC (Block Upconverter) designed for VSAT uplink applications. It operates over 6.725–7.025 GHz (Insat C-band) with a 5.76 GHz local oscillator, converting L-band IF signals (965–1265 MHz) to RF for reliable satellite transmission. With P1dB output power +40 dBm, stable gain, and support for external 10 MHz reference, it ensures consistent uplink performance in broadband and enterprise satellite systems.

Key Specifications

RF Frequency: 6.725 – 7.025 GHz (Insat C-band)

IF Frequency: 965 – 1265 MHz

Local Oscillator: 5.76 GHz

P1dB Output Power: +40 dBm min. over temperature (@ 1dB G.C.P.)

IM3: -28 dBc typ. @ total power = +40 dBm - 3 dB

Linear Gain : 64 dB nom., 58 dB min.

IF Input Interface: N-type female (50Ω)

RF Output Interface: Waveguide, CPR137 (with Groove)

Input Power Voltage Requirement : +18 to +60 VDC

Port For Voltage Input: MS Connector

Mechanical & Environmental

Waveguide Output: CPR137 (with Groove)

Dimensions: 219.5 × 175 × 99 mm

Weight: 3.2 kg

Operating Temperature: -40°C to +55°C

Waterproof: IP67

Applications

VSAT uplink systems

Broadband satellite terminals

Enterprise and telecom networks

Remote communication systems
