Nisshinbo NJT5670F

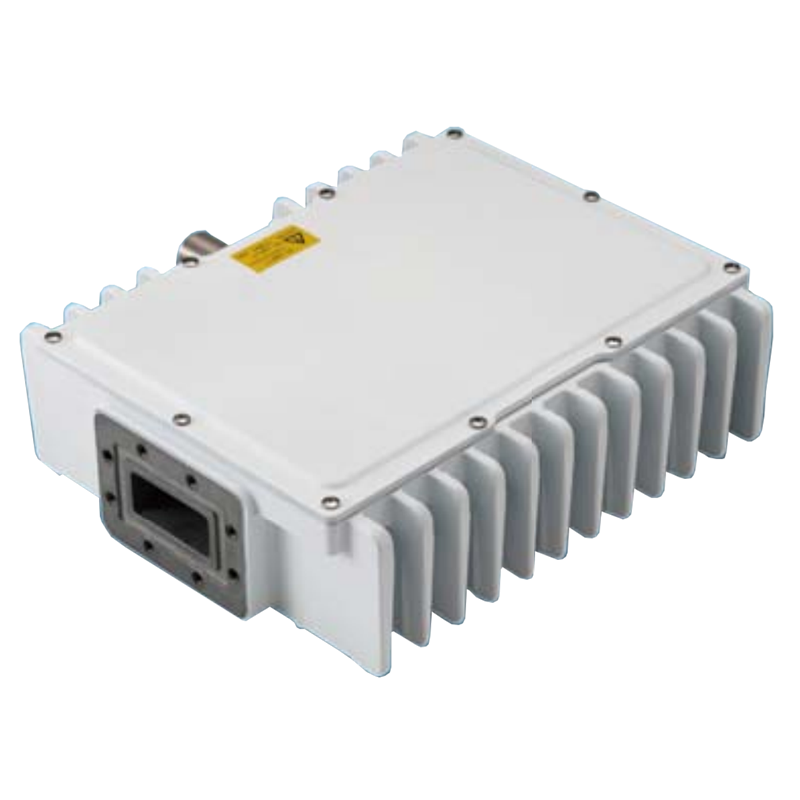

Nisshinbo NJT5670F Insat C-band 5W BUC

The NJT5670F is a high-performance C-band 5W BUC (Block Upconverter) designed for VSAT uplink applications. It operates over 6.725–7.025 GHz (Insat C-band) with a 5.76 GHz local oscillator, converting L-band IF signals (965–1265 MHz) to RF for reliable satellite transmission. With P1dB output power +37 dBm, stable gain, and support for external 10 MHz reference, it ensures consistent uplink performance in broadband and enterprise satellite systems.

Key Specifications

RF Frequency: 6.725 – 7.025 GHz (Insat C-band)

IF Frequency: 965 – 1265 MHz

Local Oscillator: 5.76 GHz

P1dB Output Power: +37 dBm min. over temperature (@ 1dB G.C.P.)

Linear Gain : 61 dB nom.

IF Input Interface: F-type female (75Ω)

RF Output Interface: Waveguide, CPR137 (with Groove)

Input Power Voltage Requirement : +24 VDC (+15 to +30 VDC)

Mechanical & Environmental

Waveguide Output: CPR137 (with Groove)

Dimensions: 190.6 × 160 × 59 mm

Weight: 1.7 kg

Operating Temperature: -40°C to +55°C

Waterproof: IP67

Applications

VSAT uplink systems

Broadband satellite terminals

Enterprise and telecom networks

Remote communication systems
