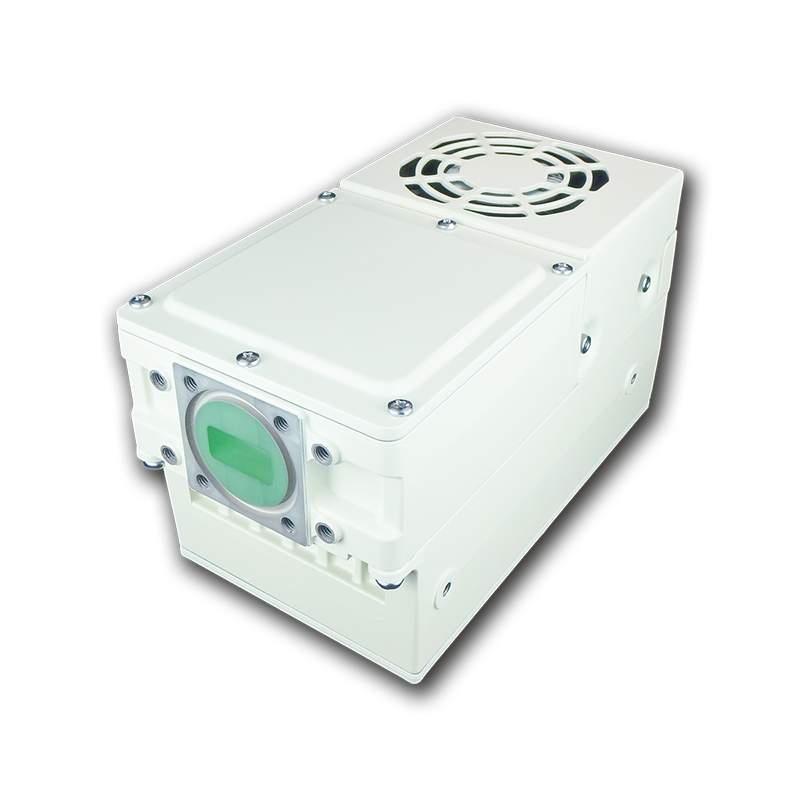

Nisshinbo NJT8336UFMT Ku-band 13.75 - 14.5 GHz GaN 16W BUC

The NJT8336UFMT is a compact and high-performance Ku-band 16W BUC (Block Upconverter) designed for VSAT uplink applications. It operates over 13.75–14.5 GHz (universal Ku-band) with a 12.8 GHz local oscillator, converting L-band IF signals (950–1700 MHz) to RF for reliable satellite transmission. With P1dB +42 dBm output power, stable gain, and support for external 10 MHz reference, it ensures consistent uplink performance in broadband and enterprise satellite systems.

Key Specifications

Advanced GaN HEMT and Internal Linearizer Equipped

Excellent Receive Band Rejection Filter Equipped

RF Frequency: 13.75 – 14.5 GHz (Universal Ku-band)

IF Frequency: 950 – 1700 MHz

Local Oscillator: 12.8 GHz

Output Power: P1dB +42 dBm (16W) min. over temperature

Gain: 62 dB

External Reference: 10 MHz input (PLL locked operation)

Input Interface: F-type female (75Ω)

Output Interface: WR-75 waveguide

Power Supply: +36 to +54 V DC Power

Port For Voltage Input: IF or Circular Connector

M & C Option: Ethernet (HTTP)

Mechanical & Environmental

Waveguide Output: WR-75 (grooved)

Dimensions: 161 × 83.8 × 86.4 mm

Weight: 1.8 kg

Operating Temperature: -40°C to +75°C

Waterproof: IP67

Applications

VSAT uplink systems

Broadband satellite terminals

Enterprise and telecom networks

Remote communication systems
