Nisshinbo NJT8319UFM

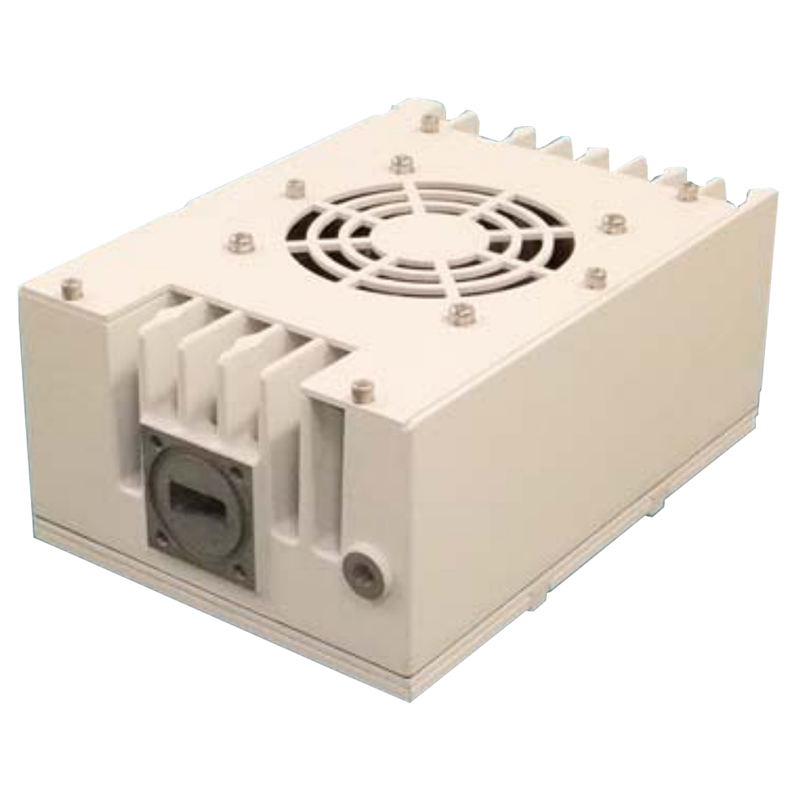

Nisshinbo NJT8319UFM Ku-band 13.75 - 14.5 GHz 16W BUC

The NJT8319UFM is a compact and high-performance Ku-band 16W BUC (Block Upconverter) designed for VSAT uplink applications. It operates over 13.75–14.5 GHz (universal Ku-band) with a 12.8 GHz local oscillator, converting L-band IF signals (950–1700 MHz) to RF for reliable satellite transmission. With P1dB +42 dBm output power, stable gain, and support for external 10 MHz reference, it ensures consistent uplink performance in broadband and enterprise satellite systems.

Key Specifications

RF Frequency: 13.75 – 14.5 GHz (Universal Ku-band)

IF Frequency: 950 – 1700 MHz

Local Oscillator: 12.8 GHz

Output Power: P1dB +42 dBm (16W) min. over temperature

Gain: 68 dB nom., 62 dB min.

Noise Figure: 20 dB max.

External Reference: 10 MHz input (PLL locked operation)

Input Interface: F-type female (75Ω)

Output Interface: WR-75 waveguide

Power Supply: +36 to +60 V DC Power

Port For Voltage Input: Circular Connector

M & C Option: N/A

Mechanical & Environmental

Waveguide Output: WR-75 (grooved)

Dimensions: 180 × 130 × 80 mm

Weight: 2.4 kg

Operating Temperature: -40°C to +75°C

Waterproof: IP67

Applications

VSAT uplink systems

Broadband satellite terminals

Enterprise and telecom networks

Remote communication systems
