Actox ABEN16KX / ABEN16KXF

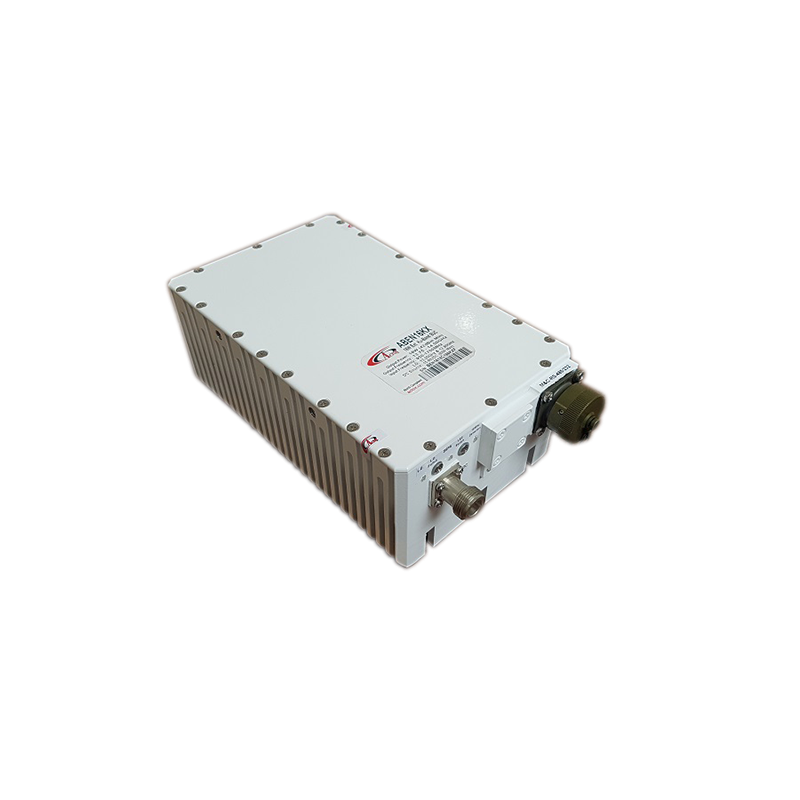

Actox ABEN16KX/ ABEN16KXF – 16W Extended 13.75–14.5 GHz Ku-Band Fanless BUC

This smallest and lightest fanless 16W L-To Ku-Band Block Up Converter is designed to be mounted on a feed horn. The unit is ideal for portable and mobile applications. Double - L.O. feature makes the unit universal for Ku-Band requirements. It is powered either with 24/48 VDC and consumes less than 92W.

Key Features

RF Frequency: 13.75 – 14.5 GHz

Output Power: 16W (+42 dBm min.), P-Linear 8.2W (+39.1 dBm min.)

Double L.O. (switchable 12.80 & 13.05 GHz)

IF Frequency: 950 – 1700 MHz

GaN technology for high efficiency and reliability

Incomparable low power consumption (92W max)

Auto-ranging 15-60 VDC powering option

Internal 10MHz high stability reference (optional)

Digital temperature compensation

Field-exchangeable (F/N) IF connector

Optional M&C - combined RS-232/485 / Ethernet (HTTP and SNMP ver. 2 & 3) / FSK (optional)

Amplifier, L.O. and 10MHz Reference Status LEDs

Built-in redundancy option

RoHS compliant

Mechanical & Environmental

Dimensions: 180 × 120 × 72 mm

Weight: 2.8 kg max.

Vibration/Shock: MIL-STD-810E compliant

IP67 outdoor-rated enclosure

Operating temperature: -40°C to +55°C

Applications

VSAT uplink systems

Broadcast uplinks

Teleport infrastructure

Remote satellite communication terminals

Government and military SATCOM systems
