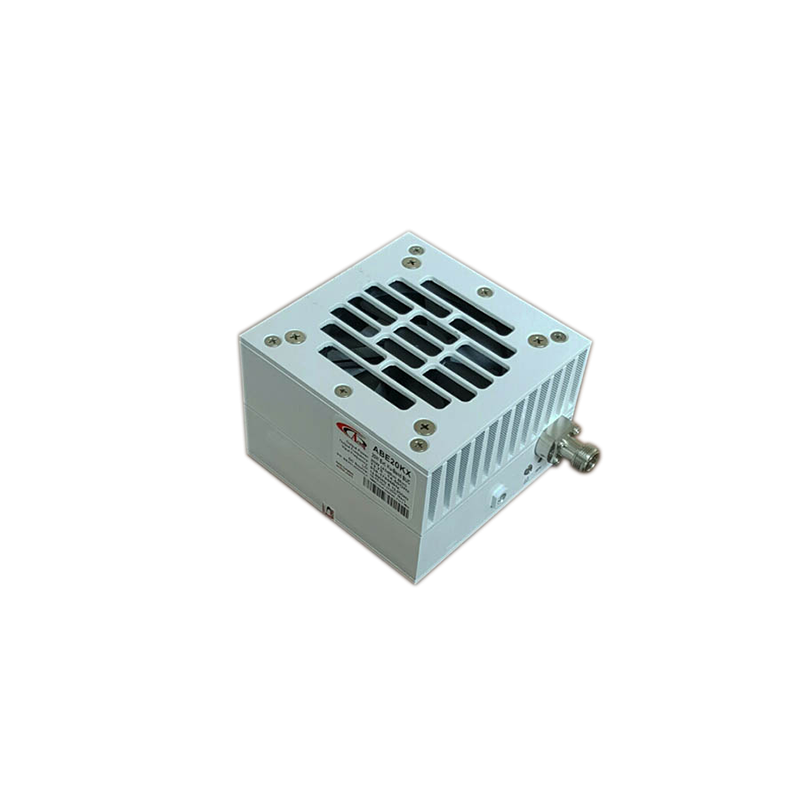

Actox ABE20KX / ABE20KXF

Actox ABE20KX / ABE20KXF – 20W Extended 13.75–14.5 GHz Ku-Band BUC

This smallest and lightest 20W L-To Ku-Band Block Up Converter is based on GaN technology. Incomparable low power consumption, double L.O., field-exchangeable connector, internal 10 MHz reference, and it is powered either with 24 or 48 VDC and consumes less than 135W. The unit is ideal for portable and mobile applications.

Key Features

RF Frequency: 13.75 – 14.5 GHz

Output Power: 20W (+43 dBm min.), P-Linear 10.7W (+40.3 dBm min)

Double L.O. (switchable 12.80 & 13.05 GHz)

IF Frequency: 950 – 1700 MHz

GaN technology for high efficiency and reliability

Incomparable low power consumption (135W max)

Auto-ranging powering option 15 - 60 VDC

Internal auto-sensing and controllable high stability 10MHz reference (optional)

Digital temperature compensation

Field-exchangeable (F/N) IF connector

Optional M&C - combined RS-232/485 / Ethernet (HTTP and SNMP ver. 2 & 3) / FSK (optional)

RoHS compliant

Mechanical & Environmental

Dimensions: 120 × 120 × 77 mm

Weight: 1.8 kg max.

Vibration/Shock: MIL-STD-810E compliant

IP67 outdoor-rated enclosure

Operating temperature: -40°C to +55°C

Applications

VSAT uplink systems

Broadcast uplinks

Teleport infrastructure

Remote satellite communication terminals

Government and military SATCOM systems
