Nisshinbo NJT8371FMR

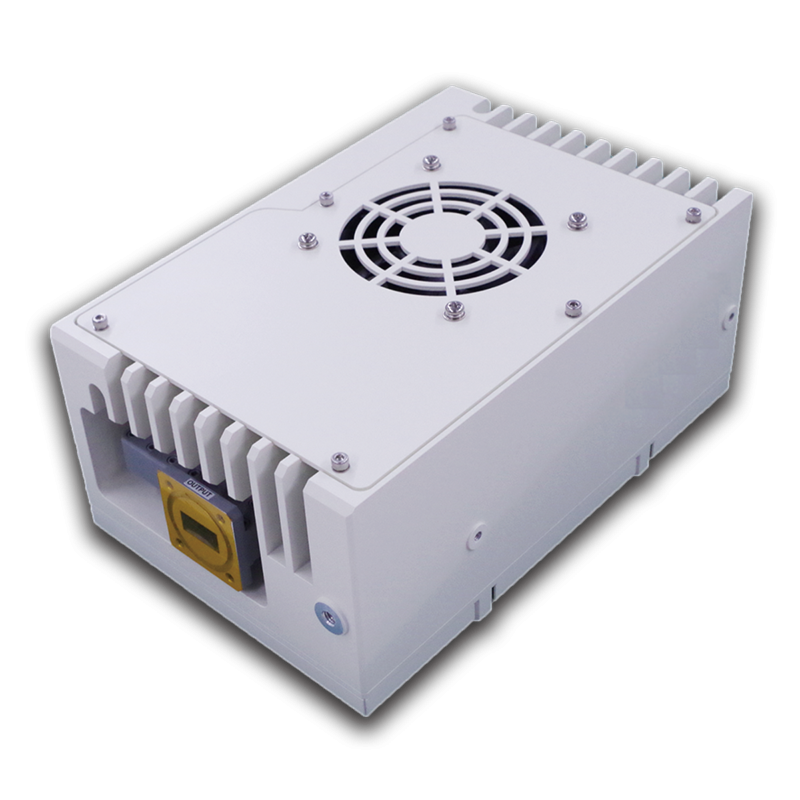

Nisshinbo NJT8371FMR Ku-band 14.0 - 14.5 GHz 40W GaN BUC

The NJT8371FMR is a compact and high-performance Ku-band 40W BUC (Block Upconverter) designed for VSAT uplink applications. It operates over 14.0–14.5 GHz (standard Ku-band) with a 13.05 GHz local oscillator, converting L-band IF signals (950–1450 MHz) to RF for reliable satellite transmission. With saturated output power 40W (+46 dBm), stable gain, and support for external 10 MHz reference, it ensures consistent uplink performance in broadband and enterprise satellite systems.

Key Specifications

RF Frequency: 14.0 – 14.5 GHz (Standard Ku-band)

IF Frequency: 950 – 1450 MHz

Local Oscillator: 13.05 GHz

Saturated Output Power: +46 dBm min. @ +25 ℃ (Psat)

Gain: 72 dB nom., 66 dB min.

Noise Figure: 20 dB max.

External Reference: 10 MHz input (PLL locked operation)

Input Interface: F-type female (75Ω)

Output Interface: WR-75 waveguide

Power Supply: +36 to +60 V DC Power

Port For Voltage Input: MS Connector

M&C Option: RS-232C M&C

Mechanical & Environmental

Waveguide Output: WR-75 (grooved)

Dimensions: 230 × 150 × 100 mm

Weight: 4.2 kg

Operating Temperature: -40°C to +60°C

Waterproof: IP67

Applications

VSAT uplink systems

Broadband satellite terminals

Enterprise and telecom networks

Remote communication systems
