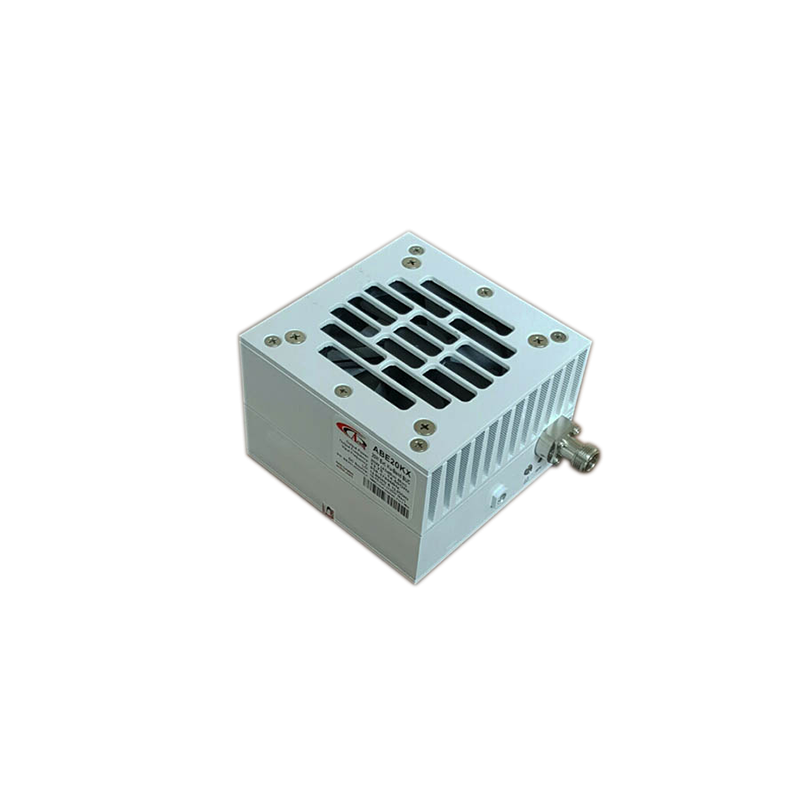

Actox ABE30SKX / ABE30SKXF

Actox ABE30SKX / ABE30SKXF – 30W Extended 13.75–14.5 GHz Ku-Band BUC

This smallest and lightest 30W L-To Ku-Band Block Up Converter is designed to be mounted on a feed horn. The unit is ideal for portable and mobile applications. Double – L.O. feature makes the unit universal for Ku-Band requirements. It is powered with either 48 VDC and consumes less than 176W.

Key Features

RF Frequency: 13.75 – 14.5 GHz

Smallest and lightest

Output Power: 30W (+44.8 dBm min.) (+45dBm Typ.) 15.7W P-Linear (+41.9 dBm min.)

Double L.O. (switchable 12.80 & 13.05 GHz)

IF Frequency: 950 – 1700 MHz

GaN technology for high efficiency and reliability

Incomparable low power consumption (176W max)

Auto-ranging powering option 30 - 60 VDC

Digital temperature compensation

Internal auto-sensing and controllable 10MHz high stability reference (optional)

L.O. lock and amplifier LEDs

Field-exchangeable (F/N) IF connector

Optional M&C - combined RS-232/485 / Ethernet (HTTP and SNMP ver. 2 & 3) / FSK (optional)

RoHS compliant

Mechanical & Environmental

Dimensions: 120 × 120 × 77 mm

Weight: 1.8 kg max.

Vibration/Shock: MIL-STD-810E compliant

IP67 outdoor-rated enclosure

Operating temperature: -40°C to +55°C

Applications

VSAT uplink systems

Broadcast uplinks

Teleport infrastructure

Remote satellite communication terminals

Government and military SATCOM systems
