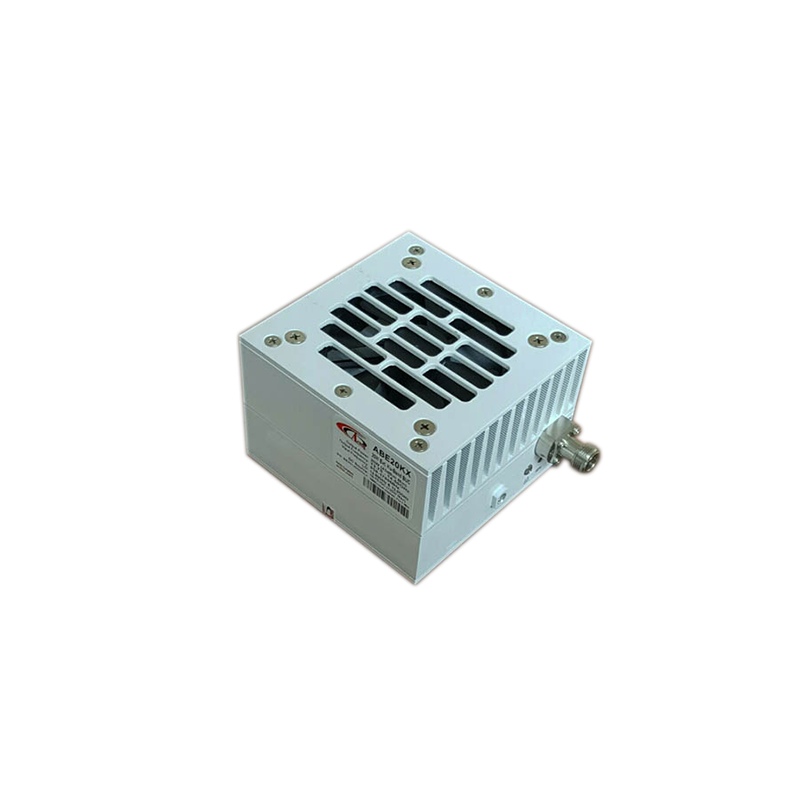

Actox ABC40SKX / ABC40SKXF

Actox ABC40SKX / ABC40SKXF – 40W Extended 13.75–14.5 GHz Ku-Band BUC

This smallest and lightest 40W L-To Ku-Band Block Up Converter is designed to be mounted on a feed horn. The unit is ideal for portable and mobile applications. Double – L.O.feature makes the unit universal for Ku-Band requirements.The unit can use either external or internal 10MHz reference.

Key Features

RF Frequency: 13.75 – 14.5 GHz

Smallest and lightest

Output Power: 40W (45.5 dBm min, 46 dBm typ.) 20W P-Linear (43 dBm min.)

Double L.O. (switchable 12.80 & 13.05 GHz)

IF Frequency: 950 – 1700 MHz

GaN technology for high efficiency and reliability

Incomparable low power consumption (192W max)

Auto-ranging powering option 30 - 60 VDC

Digital temperature compensation

Field-exchangeable (F/N) IF connector

Internal auto-sensing and controllable 10MHz high stability reference (optional)

Amplifier, L.O. and 10 MHz Reference Status LEDs

Optional M&C - combined RS-232/485 / Ethernet (HTTP and SNMP ver. 2 & 3) / FSK (optional)

RoHS compliant

Mechanical & Environmental

Dimensions: 120 × 120 × 90.4 mm

Weight: 1.8 kg max.

Vibration/Shock: MIL-STD-810E compliant

IP67 outdoor-rated enclosure

Operating temperature: -40°C to +55°C

Applications

VSAT uplink systems

Broadcast uplinks

Teleport infrastructure

Remote satellite communication terminals

Government and military SATCOM systems
