Nisshinbo NJT8318FA

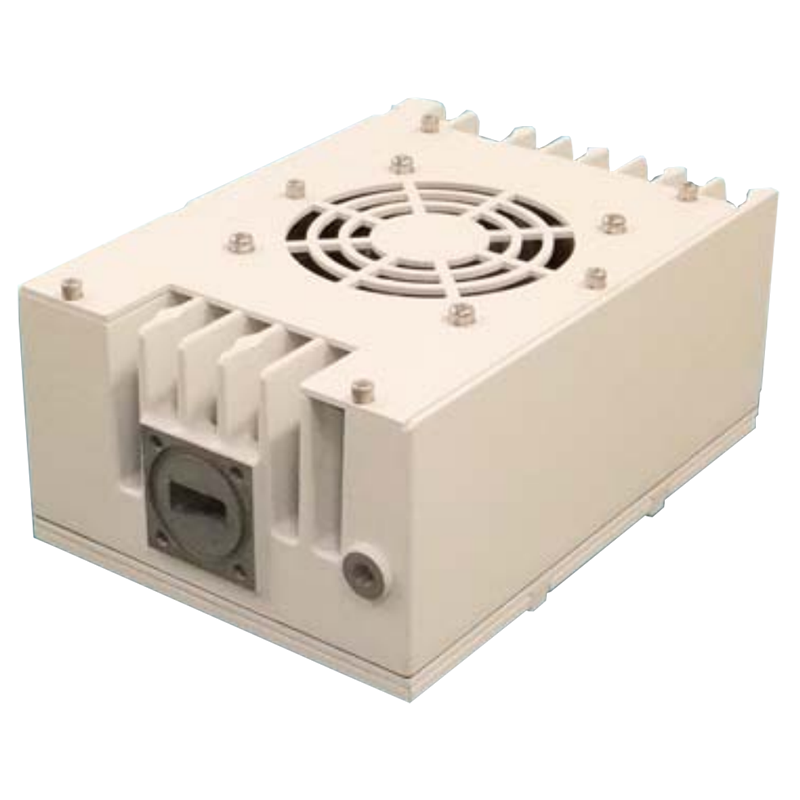

Nisshinbo NJT8318FA Ku-band 14.0 - 14.5 GHz 8W BUC

The NJT8318FA is a compact and high-performance Ku-band 8W BUC (Block Upconverter) designed for VSAT uplink applications. It operates over 14.0–14.5 GHz (universal Ku-band) with a 13.05 GHz local oscillator, converting L-band IF signals (950–1450 MHz) to RF for reliable satellite transmission. With P1dB +39 dBm output power, stable gain, and support for external 10 MHz reference, it ensures consistent uplink performance in broadband and enterprise satellite systems.

Key Specifications

RF Frequency: 14.0 – 14.5 GHz (Standard Ku-band)

IF Frequency: 950 – 1450 MHz

Local Oscillator: 13.05 GHz

Output Power: P1dB +39 dBm (8W) min. over temperature

Gain: 65 dB nom., 59 dB min.

Noise Figure: 20 dB max.

External Reference: 10 MHz input (PLL locked operation)

Input Interface: F-type female (75Ω)

Output Interface: WR-75 waveguide

Power Supply: AC Power

Port For Voltage Input: IF Connector

M & C Option: N/A

Mechanical & Environmental

Waveguide Output: WR-75 (grooved)

Dimensions: 180 × 130 × 80 mm

Weight: 2.4 kg

Operating Temperature: -40°C to +75°C

Waterproof: IP67

Applications

VSAT uplink systems

Broadband satellite terminals

Enterprise and telecom networks

Remote communication systems
