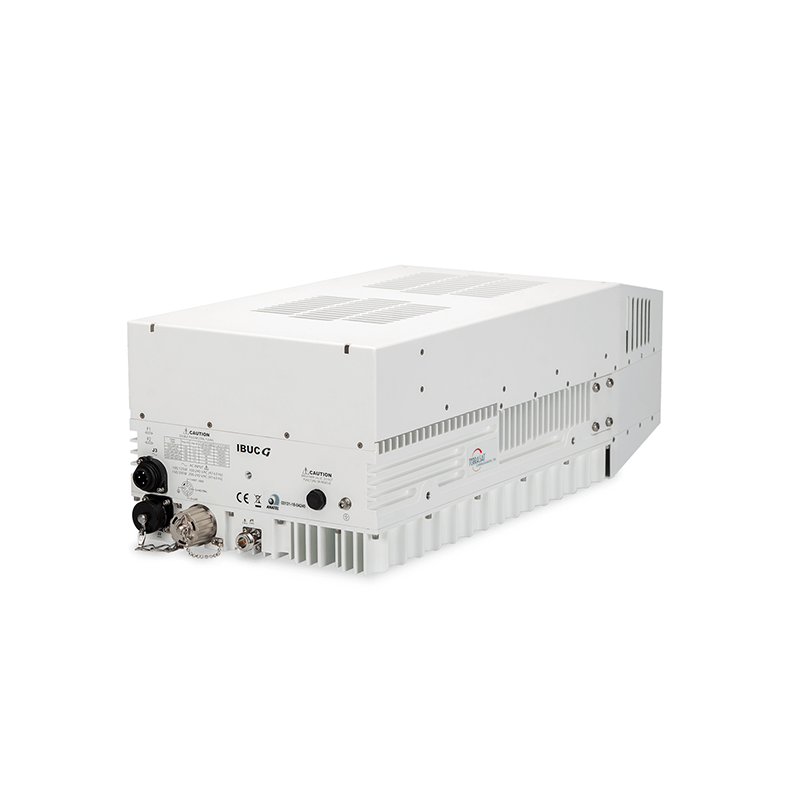

Terrasat IBUC G Ku-Band 150W / 200W GaN BUC

High-Power GaN Ku-Band Intelligent Block Upconverter for Multi-Carrier Uplinks

The Terrasat IBUC G Ku-Band 150W and 200W models are high-power, high-efficiency GaN-based intelligent block upconverters designed for demanding multi-carrier satellite uplink applications. Delivering up to 53 dBm saturated output power, these models provide strong linear performance, excellent NPR characteristics, and advanced monitoring capabilities in a rugged outdoor enclosure.

Engineered for teleport hubs, broadcast uplinks, government SATCOM, and high-throughput VSAT networks, the IBUC G 150W/200W platforms combine GaN efficiency with Terrasat’s intelligent management system.

Esatcom Inc. supplies fully configured units tailored to your RF band, reference stability, and system requirements.

Why Choose the IBUC G 150W / 200W?

GaN amplifier technology for improved power efficiency
High linear output:
    150W: up to 51.8 dBm typ.
    200W: up to 53.0 dBm typ.
19 dB minimum NPR for multi-carrier operation
High small-signal gain (83 dB min standard version)
AC powered (200–240 VAC)
Cyber Hardened version available
Designed for antenna-mount installation

Positioned above the 100W Ku-Band IBUC-G and below rack-mount or TWTA teleport amplifiers.

Ku-Band Frequency Coverage

Factory-selectable RF frequency plans:

14.000–14.500 GHz (Standard Ku-Band)
13.750–14.500 GHz (Full Ku-Band)
12.750–13.250 GHz (Low Ku-Band)

IF Range:

950–1450 MHz (Std & Low Ku)
950–1700 MHz (Full Ku)

Spectral sense: Non-inverting

Power & Mechanical

AC Input: 200–240 VAC, 50/60 Hz
Power Consumption (150W / 200W):
    At PLin: approx. 1150 VA
    At PSat: approx. 1350 VA
Mechanical:

Size: 23 × 10 × 7.4 in (584 × 254 × 188 mm)
Weight: approx. 37 lbs (17 kg)

Outdoor-rated enclosure for high-power antenna mounting.

Monitor & Control

Standard M&C

Ethernet (HTTP, Telnet, SNMPv2c) via RJ45
RS-232 / RS-485
FSK multiplexed on TX IFL

70+ configurable thresholds & alarms

Embedded web interface

Cyber Hardened Core Version (Optional)

HTTPS, SSHv2, SNMPv3 (USM & VACM)
FIPS 140-2 compliant
Dual NTP redundancy
Enhanced controller board & firmware

Advanced cybersecurity protections

Ideal for secure government and defense networks.

Ordering & Configuration

Configurable parameters include:

          Output power

RF frequency plan

AC power supply

IF connector type
10 MHz reference
WGS compatibility
Standard or Cyber Hardened M&C
Color options

Contact Esatcom Inc. to confirm the correct part number before ordering.
