Terrasat iBUC G Dual Ka-Band 80W 100W

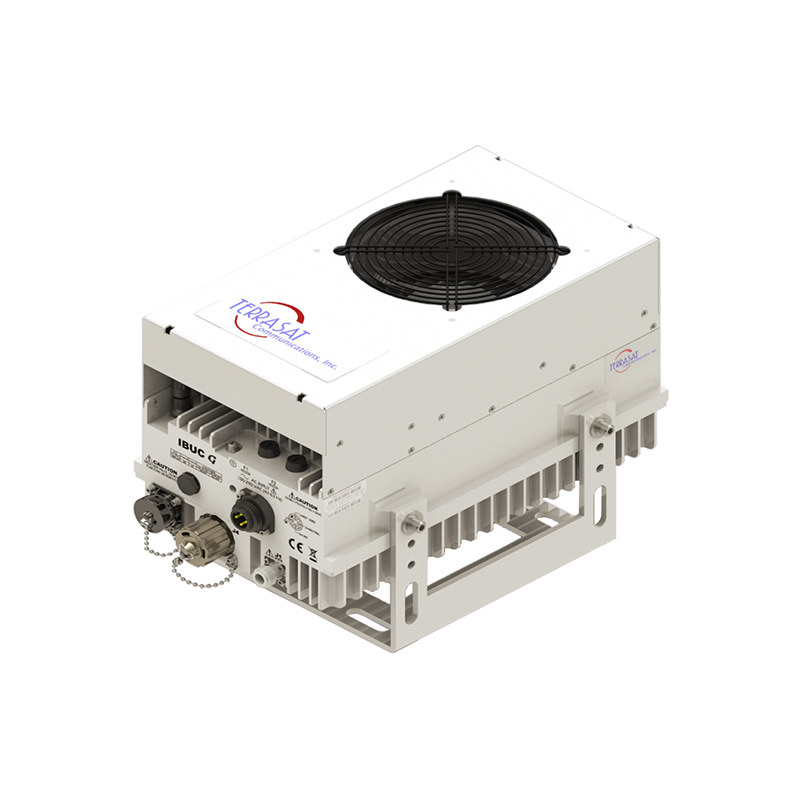

Terrasat IBUC G Ka-Band Dual-Band 80W / 100W (Smaller)

Compact Dual-Band 80W & 100W GaN Ka-Band Intelligent Block Upconverter for Multiband Multicarrier Uplinks

The Terrasat IBUC G Ka-Band Dual-Band 80W and 100W (Smaller) is a compact, high-efficiency GaN-based intelligent block upconverter engineered for multiband, multicarrier Ka-Band satellite uplinks. Featuring two software-selectable RF sub-bands with flexible IF options, this model enables agile Ka-Band deployment without hardware changes.

Designed for telecom hubs, maritime systems, government networks, and high-throughput Ka-Band terminals, the IBUC G Dual-Band combines Gallium Nitride amplifier efficiency with advanced monitoring and optional Cyber Hardened security features.

Esatcom Inc. supplies fully configured units tailored to your RF plan, IF interface, reference stability, and cybersecurity requirements.

Key Advantages

GaN technology amplifier
Multiband selectable RF + IF
Multicarrier optimized
80W & 100W output options
Compact antenna-mount enclosure (smaller Option 2 platform)
AC powered (100–240 VAC)
Cyber Hardened Core M&C option available
3-Year Warranty

Ideal for Ka-Band terminals requiring band agility and higher output power in a compact form factor.

Frequency Coverage – Dual-Band Software Selectable

Two Software-Selectable Sub-Bands

RF: 29.0 – 30.0 GHz
RF: 30.0 – 31.0 GHz
✔ Any RF can be software selected with any IF

Local Oscillator (Non-Inverting):

Sub-Band 1:
    28.0 GHz (IF 1.0–2.0 GHz)
    28.05 GHz (IF 950–1950 MHz)
Sub-Band 2:
    29.0 GHz (IF 1.0–2.0 GHz)
    29.05 GHz (IF 950–1950 MHz)

Monitor & Control

Standard Version

Ethernet (HTTP, Telnet, SNMPv2c)
RS232/485 via MS-Type connector
Handheld terminal support

Cyber Hardened Version

HTTPS, SSHv2
Selectable SNMP V1, V2, V3 (USM & VACM)
FIPS 140-2 compatible

Two NTP servers for redundancy

XSS protection

Enhanced controller board & firmware

Mechanical & Environmental

AC Powered (80W & 100W):

Size: 12.2 × 7.2 × 7.2 in
(310 × 183 × 183 mm)
Weight: 19.5 lbs (8.8 kg)

Operating Temperature:

−40°C to +55°C

Humidity:

100% condensing

Altitude:

10,000 ft (3,000 m) ASL

Ordering & Configuration

Configurable parameters include:

Output power

IF connector type

Spectral Sense & 10 MHz Reference

Standard or Cyber Hardened M&C

WGS compatibility option

Color options

Contact Esatcom Inc. to confirm the correct part number before ordering.
