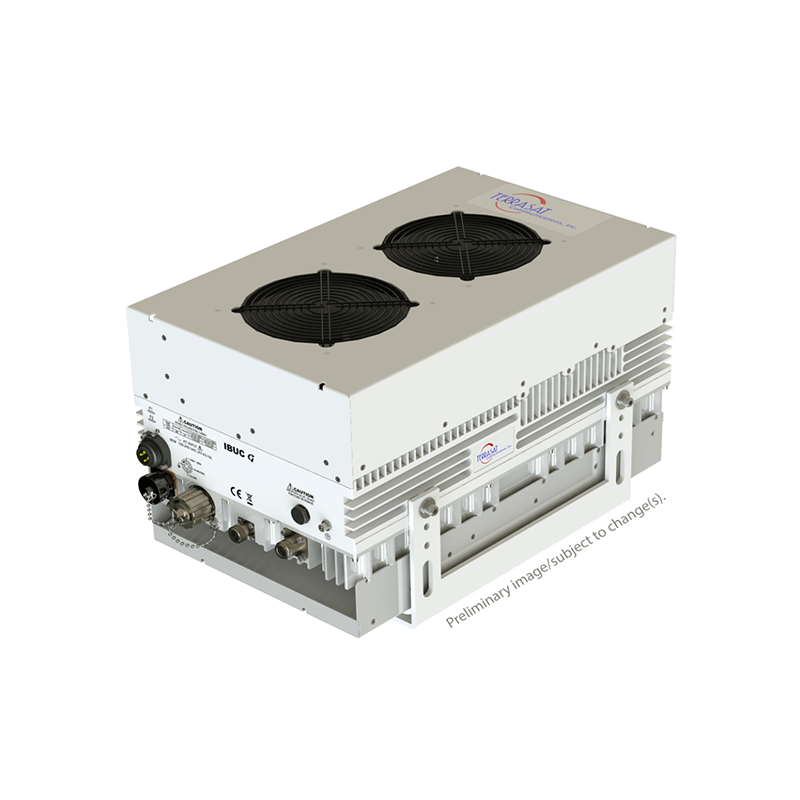

Terrasat IBUC G Ka-Band Dual-Band 125W / 160W GaN BUC

High-Power Dual-Band 125W & 160W GaN Ka-Band Intelligent Block Upconverter for Multiband Multicarrier Uplinks

The Terrasat IBUC G Ka-Band Dual-Band 125W and 160W models are high-power, antenna-mount GaN-based intelligent block upconverters designed for multiband, multicarrier Ka-Band satellite uplinks. Featuring two software-selectable RF sub-bands with flexible IF options, these units enable agile Ka-Band deployments without hardware changes.

Delivering up to +52 dBm saturated output power, the Dual-Band 125W / 160W platforms combine Gallium Nitride amplifier efficiency with advanced monitoring and optional Cyber Hardened security features.

Esatcom Inc. supplies fully configured units tailored to your RF plan, IF interface, reference stability, and security requirements.

Key Advantages

GaN technology amplifier
Multiband selectable RF + IF
Multicarrier optimized
125W & 160W high-power options
AC powered (100–240 VAC)
Cyber Hardened Core M&C option available
3-Year Warranty

Designed for telecom hubs, maritime systems, government platforms, and high-throughput Ka-Band networks.

Frequency Coverage – Dual-Band Software Selectable

Two Software-Selectable Sub-Bands

RF: 29.0 – 30.0 GHz
RF: 30.0 – 31.0 GHz
✔ Any RF can be software selected with any IF

Local Oscillator (Non-Inverting):

Sub-Band 1: 28.0 GHz
Sub-Band 2: 29.0 GHz

Mechanical & Environmental

AC Powered (125W & 160W):

Size: 16.2 × 10 × 10.2 in
(411 × 254 × 259 mm)
Weight: 45 lbs (20 kg)

Operating Temperature:

−40°C to +55°C

Humidity:

100% condensing

Altitude:

10,000 ft (3,000 m) ASL

Ordering & Configuration

Configurable parameters include:

Output power

IF connector type

Spectral Sense & 10 MHz Reference

Standard or Cyber Hardened M&C

WGS compatibility option

Color options

Contact Esatcom Inc. to confirm the correct part number before ordering.
