Terrasat iBUC G Ka Tri-Band 125W 160W

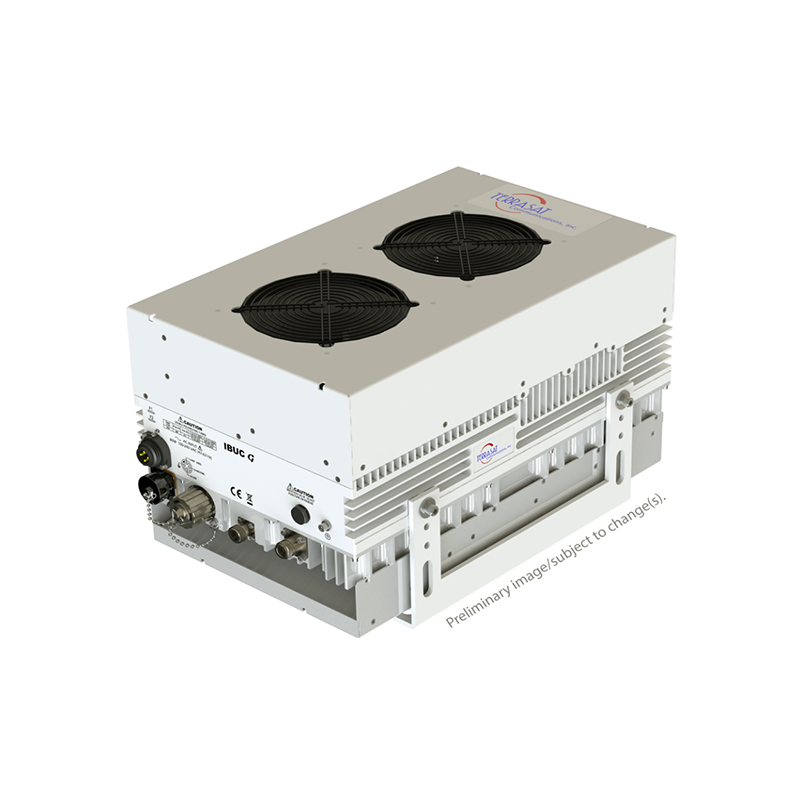

Terrasat IBUC G Ka-Band Tri-Band 125W / 160W GaN BUC

High-Power Tri-Band 125W & 160W GaN Ka-Band Intelligent Block Upconverter for Multiband Multicarrier Uplinks

The Terrasat IBUC G Ka-Band Tri-Band 125W and 160W models are high-power, antenna-mount GaN-based intelligent block upconverters engineered for multiband, multicarrier Ka-Band satellite uplinks. Featuring three software-selectable RF sub-bands (27.5–30.0 GHz), these units deliver exceptional deployment flexibility across wide Ka frequency allocations.

With up to +52 dBm saturated output power, excellent linearity, and advanced Cyber Hardened monitoring options, the Tri-Band IBUC G platform is designed for high data-rate telecom hubs, maritime systems, government networks, and high-throughput Ka-Band infrastructure.

Esatcom Inc. supplies fully configured units tailored to your RF plan, IF interface, reference stability, and security requirements.

Key Advantages

GaN technology amplifier
Three software-selectable RF sub-bands

Multicarrier optimized

125W & 160W output options
AC powered (100–240 VAC)
Cyber Hardened Core M&C option available

3-Year Warranty

Designed for flexible multiband Ka deployments with maximum output power.

Frequency Coverage – Tri-Band Software Selectable

Three Software-Selectable RF Sub-Bands

27.5 – 28.5 GHz
28.25 – 29.25 GHz

29.0 – 30.0 GHz
✔ Any RF can be software selected with any IF

Mechanical & Environmental

AC Powered:

Size: 16.2 × 10 × 10.2 in
(411 × 254 × 259 mm)
Weight: 45 lbs (20 kg)

Operating Temperature:

−40°C to +55°C

Relative Humidity:

100% Condensing

Altitude:

10,000 ft (3,000 m) ASL

Monitor & Control

Standard Version

Ethernet (HTTP, Telnet, SNMPv2c) via RJ45
RS232/485 via MS-Type connector
Handheld terminal support

Cyber Hardened Core (Optional)

HTTPS, SSHv2
Selectable SNMP V1, V2, V3 (USM & VACM)
FIPS 140-2 compatible
Two NTP servers providing redundancy
XSS protection
Enhanced controller board & firmware

Ordering & Configuration

Configurable parameters include:

Output power

IF connector type

10 MHz Reference

Standard or Cyber Hardened M&C

WGS compatibility option

Color options

Contact Esatcom Inc. to confirm the correct part number before ordering.
