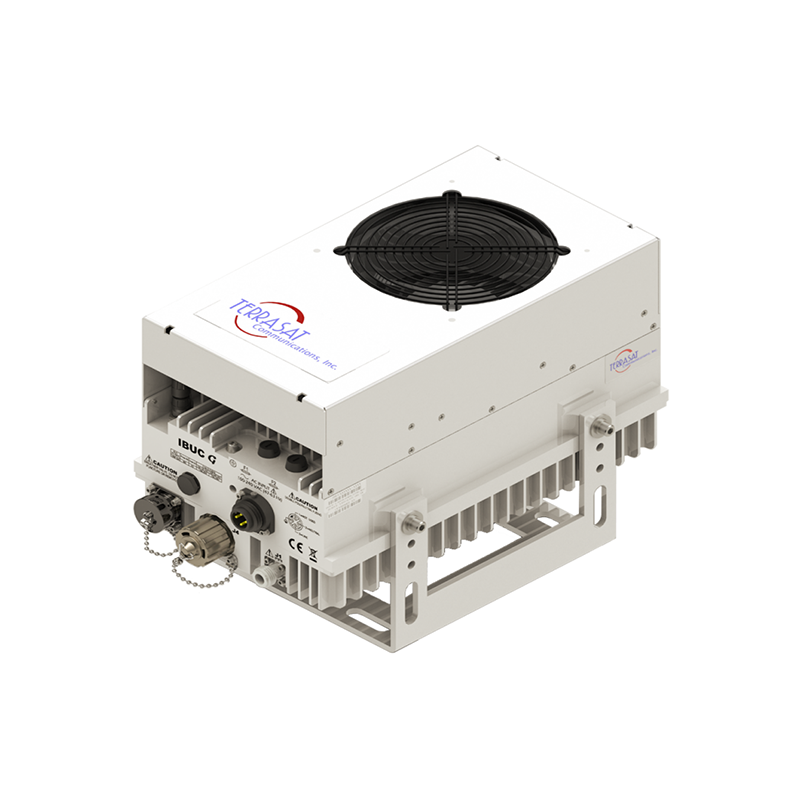

Terrasat IBUC G Ka-Band Quad-Band 60W / 80W GaN BUC

Universal Quad-Band 60W & 80W GaN Ka-Band Intelligent Block Upconverter for Multiband Multicarrier Uplinks

The Terrasat IBUC G Ka-Band Quad-Band 60W and 80W models are high-efficiency, antenna-mount GaN-based intelligent block upconverters designed for multiband, multi-orbit, and multicarrier Ka-Band satellite uplinks. Featuring four software-selectable RF sub-bands covering 27.5–31.0 GHz, these units provide universal Ka coverage without hardware changes.

Delivering up to +49 dBm saturated output power, the Quad-Band IBUC G platform combines Gallium Nitride amplifier efficiency with advanced monitoring and optional Cyber Hardened Core security features.

Esatcom Inc. supplies fully configured units tailored to your RF plan, IF interface, reference stability, and cybersecurity requirements.

Key Advantages

GaN technology amplifier
Four software-selectable RF sub-bands

Multiband & multicarrier capable

Universal Ka-Band range

Compact antenna-mount enclosure

AC powered (100–240 VAC)

Cyber Hardened Core M&C option available

3-Year Warranty

Ideal for telecom hubs, mobility systems, maritime platforms, and government Ka-Band networks requiring wide frequency agility.

Frequency Coverage – Quad-Band Software Selectable

Four Software-Selectable RF Sub-Bands

27.5 – 28.5 GHz
28.25 – 29.25 GHz

29.0 – 30.0 GHz

30.0 – 31.0 GHz

✔ Any RF can be software selected with any IF

Monitor & Control

Standard Version

Ethernet (HTTP, Telnet, SNMPv2c) via RJ45
RS232/485 via MS-Type connector
Handheld terminal support

Cyber Hardened Core (Optional)

HTTPS, SSHv2
Selectable SNMP V1, V2, V3 (USM & VACM)

IPv4 & IPv6 compatible

FIPS 140-2 compatible
Two NTP servers providing redundancy
XSS protection
Enhanced controller board & firmware

Ordering & Configuration

Configurable parameters include:

Output Power

Power Supply

IF connector type

10 MHz Reference

Standard or Cyber Hardened M&C

WGS compatibility option

Color options

Contact Esatcom Inc. to confirm the correct part number before ordering.
