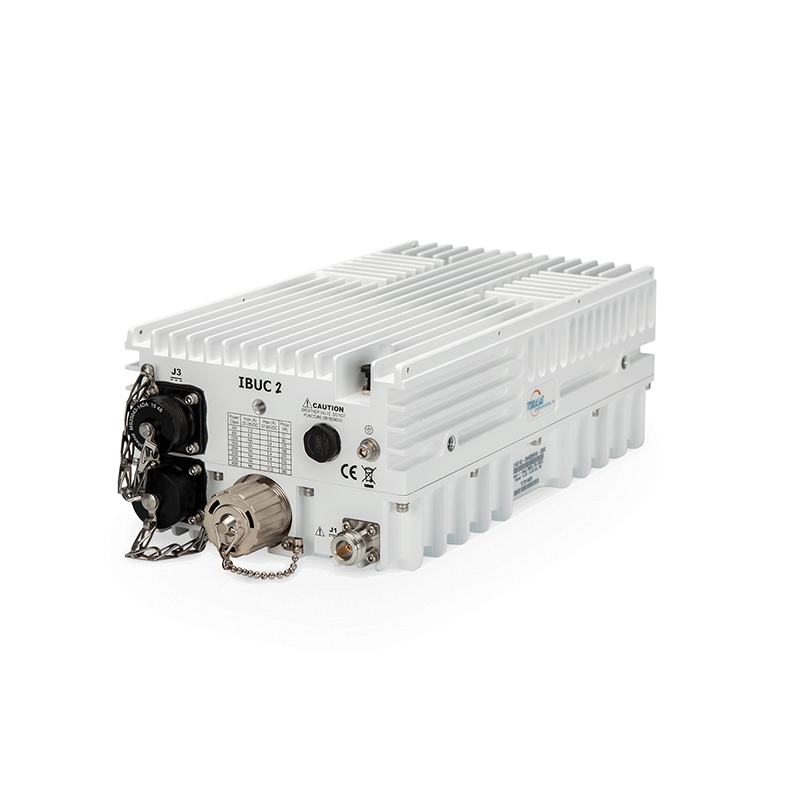

Terrasat IBR058064-0F2005WW-0919 C-band 5W IBUC 2
• RF Frequency: 5.85–6.425 GHz
• Power Output: 5W
• Non-inverting + External 10 MHz
• IF Input Connector: F-Type 75 Ω
• DC Powered, With Power Thru Coax, 24 ± 4 VDC
• Standard Terrasat White Color
• Std (C-Band) Unit with Multicarrier Compatibility Only
Security policy
Delivery policy
Return policy
Terrasat IBR058064-0F2005WW-0919
The IBR058064-0F2005WW-0919 is a 5-watt C-Band iBUC 2 designed for professional fixed and mobile SATCOM uplinks. This standard (non-WGS) configuration supports the Standard C-Band uplink frequency range (5.850–6.425 GHz) and features non-inverting spectrum, external 10 MHz reference input, DC power, and an F-type IF connector. Built on Terrasat’s GaN amplifier architecture, it delivers reliable linear output power, low phase noise, and rugged outdoor performance for mission-critical applications.
RF Frequency Plan: Standard C-Band uplink, 5.850–6.425 GHz
Output Power: 5 W
IF Frequency Range: 950–1525 MHz
IF Connector: F (Female), 75 Ω
Spectral Sense: Non-inverting
10 MHz Reference: External
Gain: 68 dB min
Power Input: DC Powered, With Power Thru Coax, 24 ± 4 VDC
Power Consumption: 60 W
M&C Interface: Ethernet
Operating Temperature: –40 °C to +60 °C
IBR058064-0F2005WW-0919
- Transmit Band
- 5.850 - 6.425 GHz
- Power Output
- 5W
Specific References
• RF Frequency: 5.85–6.425 GHz
• Power Output: 5W
• Non-inverting + External 10 MHz
• IF Input Connector: F-Type 75 Ω
• DC Powered, With Power Thru Coax, 24 ± 4 VDC
• Standard Terrasat White Color
• Std (C-Band) Unit with Multicarrier Compatibility Only
