SpaceBridge SBB0800K 800W Ku-Band Outdoor GaN BUC

SpaceBridge SBB0800K 800W Ku-Band Outdoor GaN BUC

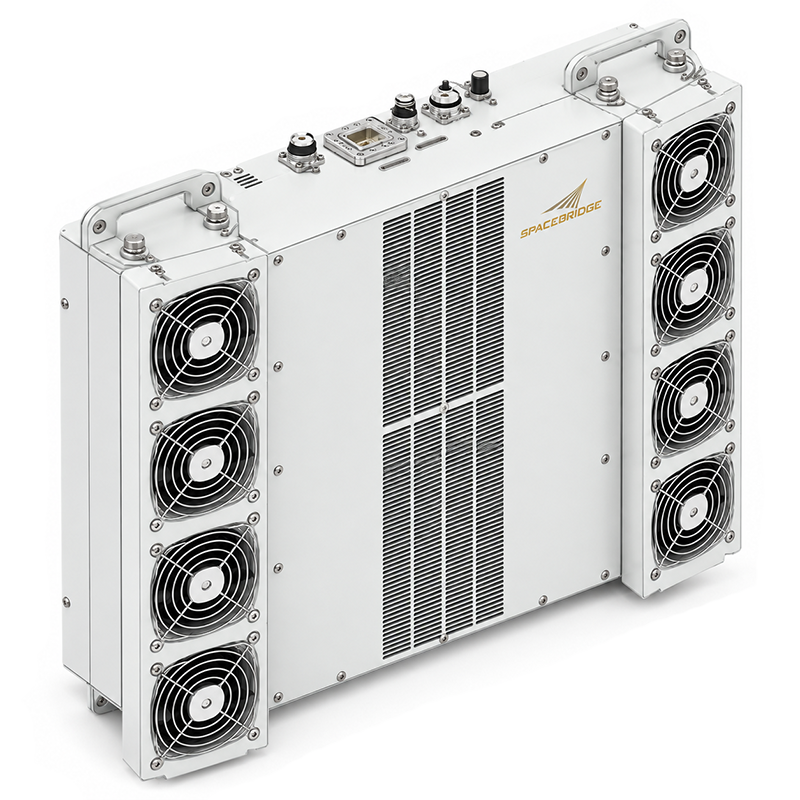

The SpaceBridge SBB0800K is an 800 W Ku-band outdoor block upconverter (BUC) powered by advanced Gen III GaN technology. Designed for satellite contribution, DTH distribution, cellular backhaul and HTS/UHTS VSAT hubs, it delivers high-linearity amplification for multicarrier and multi-transponder applications. Its IP67 enclosure, built-in 1:1 and 2:1 redundancy, and Ethernet monitoring support reliable operation in demanding outdoor installations.

Frequency Options

SBB0800KL — Appendix 30B-15; RF Frequency Range: 12.75–13.25 GHz; IF Frequency Range: 950–1450 MHz; LO Frequency: 11.8 GHz

SBB0800KX — Extended Ku-band; RF Frequency Range: 13.75–14.5 GHz; IF Frequency Range: 950–1700 MHz; LO Frequency: 12.8 GHz

SBB0800KX — Standard Ku-band; RF Frequency Range: 14.0–14.5 GHz; IF Frequency Range: 950–1450 MHz; LO Frequency: 13.05 GHz

KX LO Selection: Switchable between 12.8 GHz and 13.05 GHz

Technical Specifications

Saturated Output Power: 800 W / 59 dBm min.

Single-Carrier Linear Output Power: 500 W / 57 dBm min.

Two-Carrier Linear Output Power: 400 W / 56 dBm min.

Small-Signal Gain: 75 dB typ.

Gain Control: 20 dB min. dynamic range, adjustable in 0.1 dB steps

IF Input Connector: N-type female, 50 Ω

RF Output Connector: WR75 grooved waveguide

Reference Frequency: External 10 MHz; optional internal high-stability reference

AC Input Voltage: 180–265 VAC

AC Frequency Range: 47–63 Hz

Power Consumption at Saturated Output: 5900 W

Monitoring and Control: Ethernet web interface, SNMP, RS-232, RS-485 and dry contacts

Redundancy: Built-in 1:1 and 2:1

Cooling: Forced air

Operating Temperature: −40 °C to +55 °C

Environmental Protection: IP67

Dimensions: 727.2 × 635.0 × 164.7 mm

Weight: 54 kg / 120 lb

Key Features

• Gen III GaN technology for high efficiency and linearity

• Built-in 1:1 and 2:1 redundancy without an external redundancy controller

• High-precision true RMS output power meter

• Ethernet web interface and SNMP support

• Output overdrive, output VSWR and thermal shutdown protection

• Optional phase combining of two units for 1750 W saturated output with 800 W fail-safe operation

• Optional internal high-stability 10 MHz reference

• Optional 1U remote control panel for 1:1 redundancy

• Optional 2U remote control panel for phase combining and 2:1 redundancy
