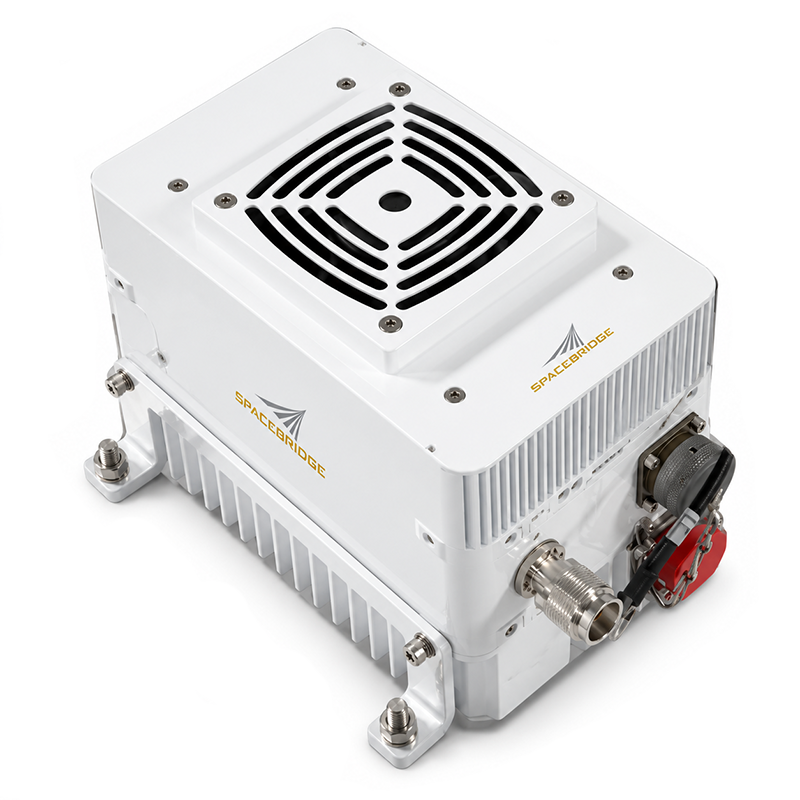

SpaceBridge SBB0025C 25W C-Band Outdoor GaN BUC
The SpaceBridge SBB0025C is a compact 25 W C-band outdoor block upconverter (BUC) powered by GaN technology, designed for broadcast contribution, cellular backhaul, VSAT and SCPC terminals. Available in Standard, Extended and INSAT C-band configurations, it provides high-linearity amplification with built-in 1:1 redundancy, Ethernet monitoring and an integrated AC power supply. Its IP67 enclosure supports reliable operation in demanding fixed and mobile outdoor applications.
Frequency Options
| Model / Configuration | RF Frequency Range | IF Frequency Range | LO Frequency |
| SBB0025CS — Standard C-band | 5.850–6.425 GHz | 950–1525 MHz | 4.9 GHz |
| SBB0025CX — Extended C-band | 5.850–6.725 GHz | 950–1825 MHz | 4.9 GHz |
| SBB0025CI — INSAT C-band | 6.725–7.025 GHz | 975–1275 MHz | 5.750 GHz |
Technical Specifications
• Rated Output Power: 25 W / 44 dBm min.
• Single-Carrier Linear Output Power: 16 W / 42 dBm min.
• Two-Carrier Linear Output Power: 12.6 W / 41 dBm min.
• Small-Signal Gain: 70 dB typ.
• Gain Control: 20 dB min. dynamic range, adjustable in 0.1 dB steps
• IF Input Connector: N-type female, 50 Ω
• RF Output Connector: CPR137 grooved waveguide flange
• Reference Frequency: External 10 MHz; optional internal high-stability reference
• AC Input Voltage: 90–265 VAC
• AC Frequency Range: 47–63 Hz
• Optional DC Input Voltage: 36–72 VDC, replacing the AC power option
• Power Consumption at Saturated Output: 175 W
• Power Consumption at Two-Carrier Linear Output: 150 W
• Monitoring and Control: Ethernet web interface, SNMP, RS-232 and RS-485
• Redundancy: Built-in 1:1
• Cooling: Forced air
• Operating Temperature: −40 °C to +55 °C
• Environmental Protection: IP67
• Dimensions: 229 × 127 × 165 mm
• Weight: 4.5 kg / 10 lb
Key Features
• GaN technology for high efficiency and linearity
• Standard, Extended and INSAT C-band options
• Built-in 1:1 redundancy without an external redundancy controller
• High-precision true RMS output power meter
• Integrated AC power supply or optional DC power input
• Ethernet web interface and SNMP support
• Output overdrive, output VSWR and thermal shutdown protection
• Optional internal high-stability 10 MHz reference
• Optional 1U remote control panel for 1:1 redundancy
