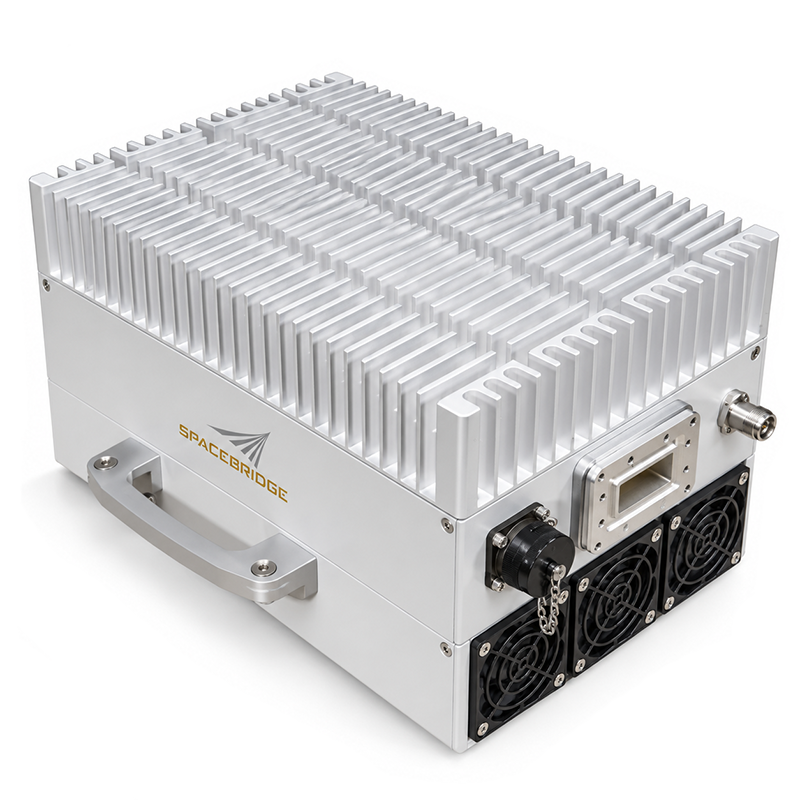

SpaceBridge SBB0250C 250W C-Band Outdoor GaN BUC
The SpaceBridge SBB0250C is a 250 W C-band outdoor block upconverter (BUC) powered by Gen III GaN technology, designed for broadcast contribution, DTH distribution, cellular backhaul and broadband VSAT applications. Available in Standard, Extended and INSAT C-band configurations, it provides high-linearity amplification for single-carrier and multicarrier operation. Its IP67 enclosure, built-in 1:1 redundancy and Ethernet monitoring support reliable operation in demanding outdoor installations.
Frequency Options
| Model / Configuration | RF Frequency Range | IF Frequency Range | LO Frequency |
| SBB0250CS — Standard C-band | 5.850–6.425 GHz | 950–1525 MHz | 4.9 GHz |
| SBB0250CX — Extended C-band | 5.850–6.725 GHz | 950–1825 MHz | 4.9 GHz |
| SBB0250CI — INSAT C-band | 6.725–7.025 GHz | 1150–1450 MHz | 5.575 GHz |
Technical Specifications
Saturated Output Power: 250 W / 54 dBm min.
Single-Carrier Linear Output Power: 160 W / 52 dBm min.
Two-Carrier Linear Output Power: 125 W / 51 dBm min.
Small-Signal Gain: 70 dB typ.
Gain Control: 20 dB min. dynamic range, adjustable in 0.1 dB steps
IF Input Connector: N-type female, 50 Ω
RF Output Connector: CPR137 grooved waveguide flange, threaded 10-32 UNF
Reference Frequency: External 10 MHz; optional internal high-stability reference
AC Input Voltage: 196–265 VAC
AC Frequency Range: 47–63 Hz
Power Consumption at Saturated Output: 1000 W
Power Consumption at Two-Carrier Linear Output: 870 W
Monitoring and Control: Ethernet web interface, SNMP, RS-232, RS-485 and Form-C contacts
Redundancy: Built-in 1:1
Cooling: Forced air
Operating Temperature: −40 °C to +55 °C
Environmental Protection: IP67
Dimensions: 327 × 279 × 187 mm
Weight: 13.6 kg / 30 lb
Key Features
• Gen III GaN technology for high efficiency and linearity
• Standard, Extended and INSAT C-band options
• Supports single-carrier, multicarrier and multi-transponder applications
• Built-in 1:1 redundancy without an external redundancy controller
• High-precision true RMS output power meter
• Ethernet web interface and SNMP support
• Output overdrive, output VSWR and thermal shutdown protection
• Optional internal high-stability 10 MHz reference
• Optional 1U remote control panel for 1:1 redundancy
SpaceBridge SBB0250C
- Transmit Band
- 5.850 - 6.425 GHz
- Transmit Band
- 6.725 - 7.025 GHz
- Transmit Band
- 5.850 - 6.725 GHz
- Power Output
- 250W
