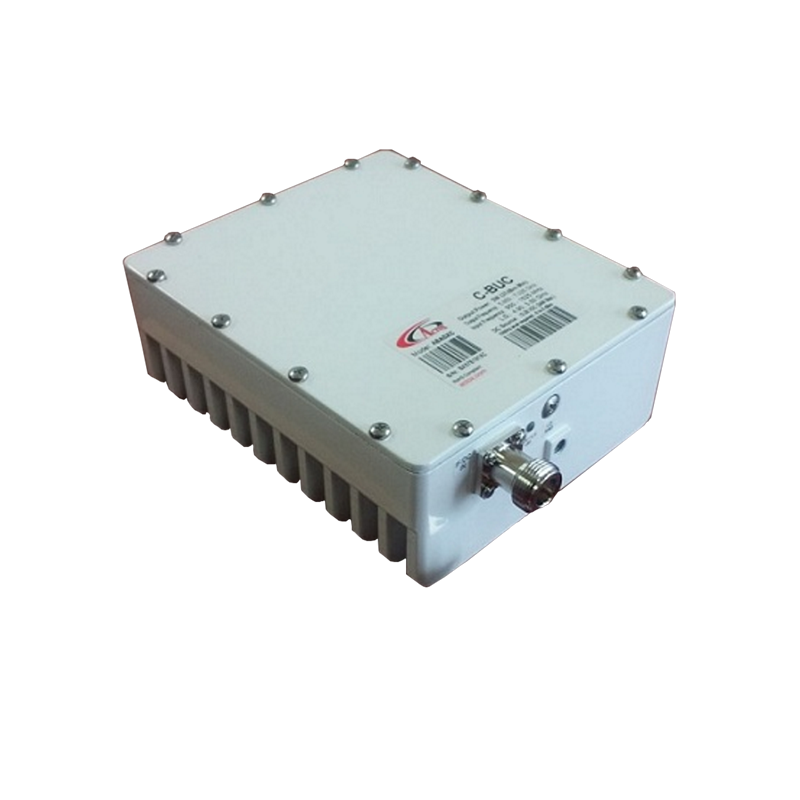

Actox ABE3XC / ABE3XCF

Actox ABE3XC / ABE3XCF  – 3W Full 5.85–7.025 GHz C-Band BUC

This smallest and lightest 3W L-To C-Band Block Up Converter is based on GaN technology. It is designed to be mounted on the feed horn. High power efficiency resulting in the low current (<1.5 amps @ 24VDC). The unit covers all three C-Band sub-bands: Standard (5.85-6.425 GHz), Palapa (6.365-6.725 GHz) and Insat (6.725-7.025 GHz).

Key Features

RF Frequency: 5.85 – 7.025 GHz

Output Power: 3W (+34.7 dBm min.)

Dual Local Oscillator.: 4.90 and 5.20 GHz

IF Frequency: 950 – 1825 MHz

GaN technology for high efficiency and reliability

Low power consumption: 17W max.

Auto-ranging power input: +15 to +60 VDC

Digital temperature compensation

L.O. lock and amplifier LEDs

IF Connector: N-type or F-type (field-exchangeable)

Built-in redundancy option

Optional internal 10 MHz high stability reference

CPR137G waveguide output

IP67 weatherproof housing

MIL-STD-810E vibration and shock compliant

Operating temperature: -40°C to +55°C

Weight: 1 kg max.

RoHS compliant

Three-year warranty

Mechanical & Environmental

Compact feed-mount design

Dimensions: 140 × 120 × 52.5 mm

Weight: 1 kg max.

Altitude: Up to 23,000 feet

Vibration/Shock: MIL-STD-810E compliant

IP67 outdoor-rated enclosure

Applications

VSAT uplink systems

Broadcast uplinks

Teleport infrastructure

Remote satellite communication terminals

Government and military SATCOM systems
