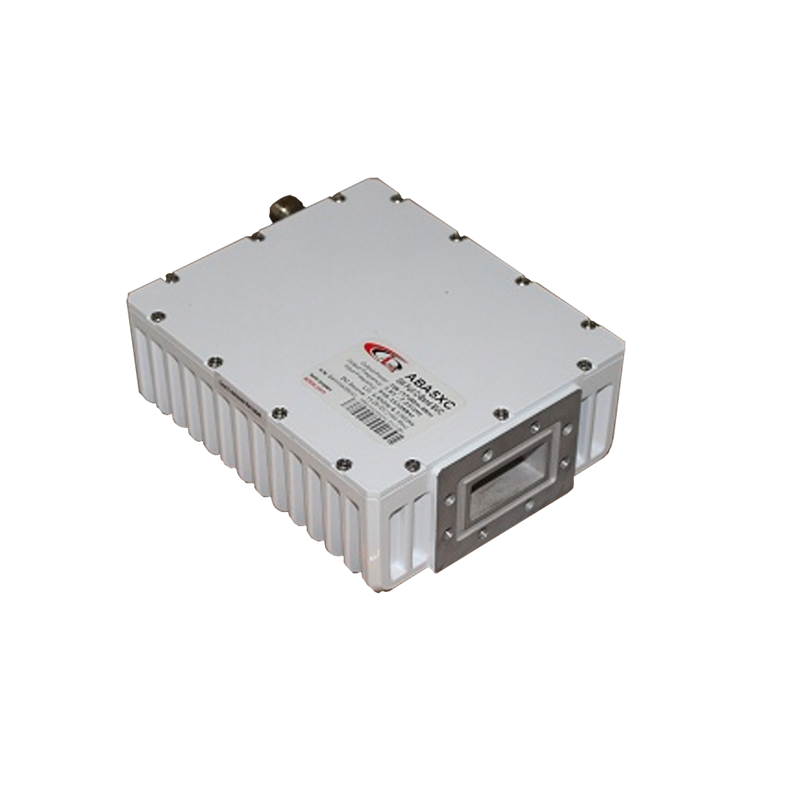

Actox ABE5XC / ABE5XCF

Actox ABE5XC / ABE5XCF  – 5W Full 5.85–7.025 GHz C-Band BUC

This smallest and lightest 5W L-To C-Band Block Up Converter is based on GaN technology. It is designed to be mounted on the feed horn. High power effi ciency resulting in the low current (0.4 amps max. @ 48VDC). The unit covers all three C-Band sub-bands: Standard (5.85-6.425 GHz), Palapa (6.365-6.725 GHz) and Insat (6.725-7.025 GHz).

Key Features

RF Frequency: 5.85 – 7.025 GHz

Output Power: 5W (+37 dBm min.)

Dual Local Oscillator.: 4.90 and 5.20 GHz

IF Frequency: 950 – 1825 MHz

GaN technology for high efficiency and reliability

Low power consumption: 19W max.

Auto-ranging power input: +15 to +60 VDC

Digital temperature compensation

L.O. lock and amplifier LEDs

IF Connector: N-type or F-type (field-exchangeable)

Built-in redundancy option

Optional internal 10 MHz high stability reference

CPR137G waveguide output

IP67 weatherproof housing

MIL-STD-810E vibration and shock compliant

Operating temperature: -40°C to +55°C

RoHS compliant

Three-year warranty

Mechanical & Environmental

Compact feed-mount design

Dimensions: 140 × 120 × 52.5 mm

Weight: 1.0 kg max.

Vibration/Shock: MIL-STD-810E compliant

IP67 outdoor-rated enclosure

Applications

VSAT uplink systems

Broadcast uplinks

Teleport infrastructure

Remote satellite communication terminals

Government and military SATCOM systems
