Actox ABE5IC / ABE5ICF
Insat C-band 5W Mini BUC
• RF Frequency: 6.725 to 7.025 GHz
• IF Frequency: 965 to 1265 MHz
• Local Frequency 5.76 GHz
• IF Connector: N (50Ω) or F type (75Ω)
• Output Power: +37 dBm min.
Security policy
Delivery policy
Return policy

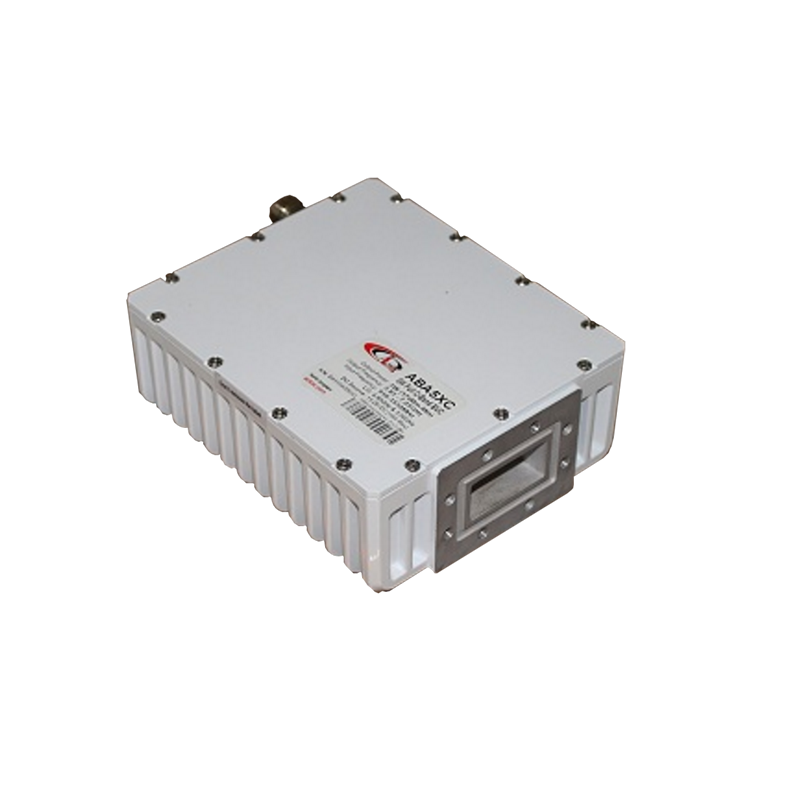

Actox ABE5IC / ABE5ICF – 5W Insat 6.725–7.025 GHz C-Band BUC
This smallest and lightest 5W L-To C-Band Block Up Converter is based on GaN technology. High power efficiency resulting in the lowest power consumption (0.4 amps max. @ 48 VDC). The unit covers Standard (5.850-6.425 GHz) and Palapa (6.725-7.025 GHz) C-Band frequencies.
Key Features
RF Frequency: 6.725 – 7.025 GHz
Output Power: 5W (+37 dBm min.), P-Linear 2.5W (+34 dBm min.)
Local Oscillator.: 5.76 GHz
IF Frequency: 965 – 1265 MHz
GaN technology for high efficiency and reliability
Low power consumption: 19W max.
Auto-ranging power input: +15 to +60 VDC
Digital temperature compensation
L.O. lock and amplifier LEDs
IF Connector: N-type or F-type (field-exchangeable)
Built-in redundancy option
Optional internal 10 MHz high stability reference
CPR137G waveguide output
IP67 weatherproof housing
MIL-STD-810E vibration and shock compliant
Operating temperature: -40°C to +55°C
RoHS compliant
Three-year warranty
Mechanical & Environmental
Compact feed-mount design
Dimensions: 140 × 120 × 52.5 mm
Weight: 1.0 kg max.
Vibration/Shock: MIL-STD-810E compliant
IP67 outdoor-rated enclosure
Applications
VSAT uplink systems
Broadcast uplinks
Teleport infrastructure
Remote satellite communication terminals
Government and military SATCOM systems
ABE5IC, ABE5ICF
- Transmit Band
- 6.725 - 7.025 GHz
- Power Output
- 5W
Specific References
Insat C-band 5W Mini BUC
• RF Frequency: 6.725 to 7.025 GHz
• IF Frequency: 965 to 1265 MHz
• Local Frequency 5.76 GHz
• IF Connector: N (50Ω) or F type (75Ω)
• Output Power: +37 dBm min.
