Actox ABE12DCM / ABE12DCMF

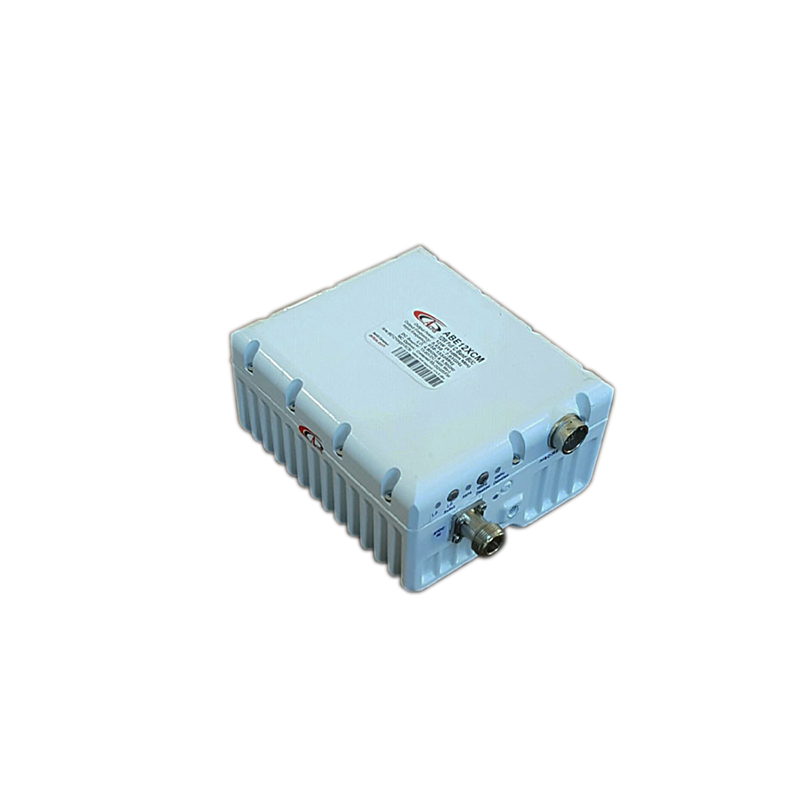

Actox ABE12DCM / ABE12DCMF  – 12W Extended 5.85–6.725 GHz C-Band BUC

This smallest and lightest 12W L-To C-Band Block Up Converter is based on GaN technology. It is designed to be mounted on the feed horn. High power efficiency resulting in the low current (<=1.5 amps @ 24 VDC). The unit covers C-Band sub-bands: Standard (5.850- 6.425 GHz) and Palapa (6.365-6.725 GHz).

Key Features

RF Frequency: 5.85 – 6.725 GHz

Output Power: 12W (+41 dBm min.)

Local oscillator: 4.90 GHz

IF Frequency: 950 – 1825 MHz

GaN technology for high efficiency and reliability

Incomparable low power consumption (44W max)

Advanced M&C - combined RS-232/485 / Ethernet (HTTP and SNMP ver. 2 & 3) / FSK (optional)

Auto-ranging power input: +15 to +60 VDC

Digital temperature compensation

Power and lock status LED

Field-exchangeable (F/N) IF connector

Optional internal 10 MHz high stability reference

RoHS compliant

Three-year warranty

Mechanical & Environmental

Compact feed-mount design

Dimensions: 140 × 120 × 69.5 mm

Weight: 1.2 kg max.

Vibration/Shock: MIL-STD-810E compliant

IP67 outdoor-rated enclosure

Operating temperature: -40°C to +55°C

Applications

VSAT uplink systems

Broadcast uplinks

Teleport infrastructure

Remote satellite communication terminals

Government and military SATCOM systems
