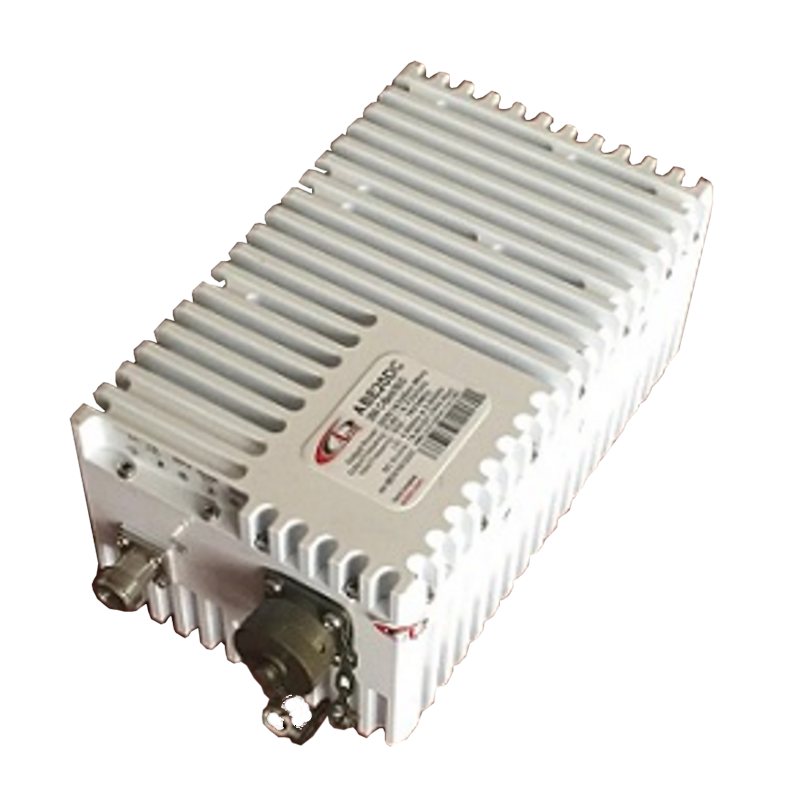

Actox ABE20IC / ABE20ICF
Insat C-band 20W Fanless BUC
• RF Frequency: 6.725 to 7.025 GHz
• IF Frequency: 950 to 1250 MHz
• Local Frequency 5.76 GHz
• IF Connector: N (50Ω) or F type (75Ω)
• Output Power: +43 dBm min.
Security policy
Delivery policy
Return policy
Actox ABE20IC / ABE20ICF – 20W Insat 6.725–7.025 GHz C-Band BUC
This smallest and lightest fanless 20W L-To C-Band Block Up Converter is based on GaN technology. It could be mounted directly on a feed horn.The unit covers Insat C-Band frequency (6.725-7.025 GHz)
Key Features
RF Frequency: 6.725 – 7.025 GHz
Output Power: 20W (+43 dBm min.), P-Linear 11.2W (40.49 dBm min.)
Local oscillator: 5.76 GHz
IF Frequency: 950 – 1255 MHz
GaN technology for high efficiency and reliability
Incomparable low power consumption (75W max)
Auto-ranging power input: +15 to +60 VDC
Digital temperature compensation
Power and lock status LED
Field-exchangeable (F/N) IF connector
Optional M&C - combined RS-232/485 / Ethernet (HTTP and SNMP ver. 2 & 3) / FSK (optional)
Optional internal 10 MHz high stability reference
RoHS compliant
Three-year warranty
Mechanical & Environmental
Dimensions: 195 × 120 × 87 mm
Weight: 2.76 kg max.
Vibration/Shock: MIL-STD-810E compliant
IP67 outdoor-rated enclosure
Operating temperature: -40°C to +63°C
Applications
VSAT uplink systems
Broadcast uplinks
Teleport infrastructure
Remote satellite communication terminals
Government and military SATCOM systems
ABE20IC, ABE20ICF
- Transmit Band
- 6.725 - 7.025 GHz
- Power Output
- 20W
