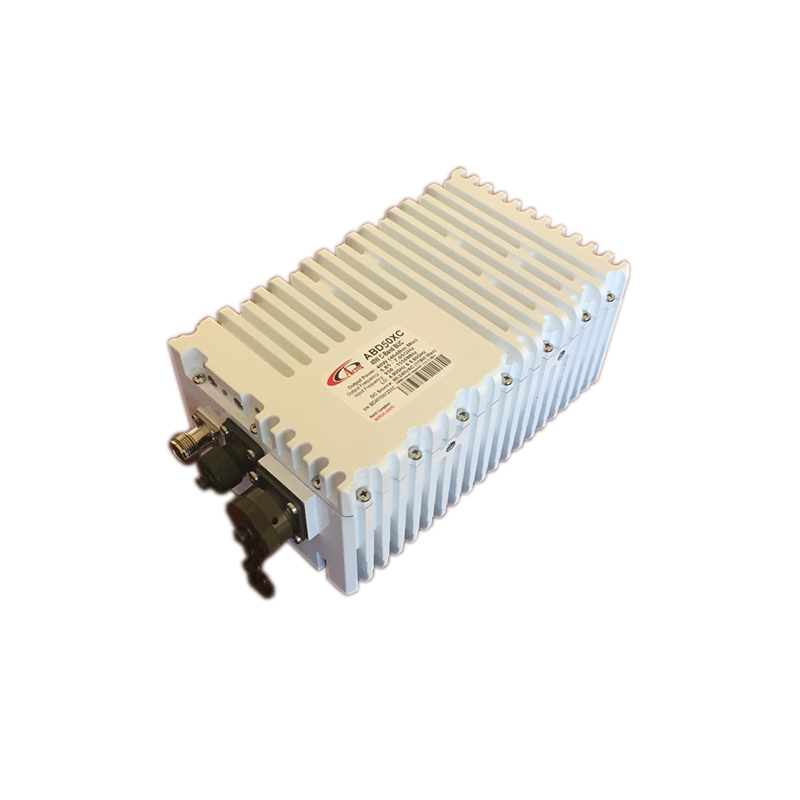

Actox ABD50XC / ABD50XCF – 50W Full 5.85–7.025 GHz C-Band BUC
This smallest and lightest 50W L-To C-Band Block Up Converter is based on GaN technology. It is designed to be mounted on the feed horn. The unit covers all three C-Band sub-bands: Standard (5.850-6.425 GHz) and Palapa (6.365-6.725 GHz) and Insat (6.725-7.025 GHz).
Key Features
RF Frequency: 5.85 – 7.025 GHz
Output Power: 50W (+47 dBm min.), P-Linear 25.1W (44 dBm min.)
Dual local oscillator: 4.90 and 5.20 GHz
IF Frequency: 950 – 1825 MHz
GaN technology for high efficiency and reliability
Incomparable low power consumption (186W max)
Auto-ranging power input: 80 to 240 VDC
Digital temperature compensation
Power and lock status LED
Field-exchangeable (F/N) IF connector
Built-in redundancy option
Advanced M&C - combined RS-232/485 / Ethernet (HTTP and SNMP ver. 2 & 3) / FSK (optional)
Internal auto-sensing and controllable 10MHz high stability reference (optional)
Special Feature: Chinese GUI (optional)
Mechanical & Environmental
Compact feed-mount design
Dimensions: 195 × 120 × 99 mm
Weight: 2.96 kg max.
Vibration/Shock: MIL-STD-810E compliant
IP67 outdoor-rated enclosure
Operating temperature: -40°C to +55°C
Applications
VSAT uplink systems
Broadcast uplinks
Teleport infrastructure
Remote satellite communication terminals
Government and military SATCOM systems
ABD50XC, ABD50XCF
- Transmit Band
- 5.850 - 7.050 GHz
- Power Output
- 50W
