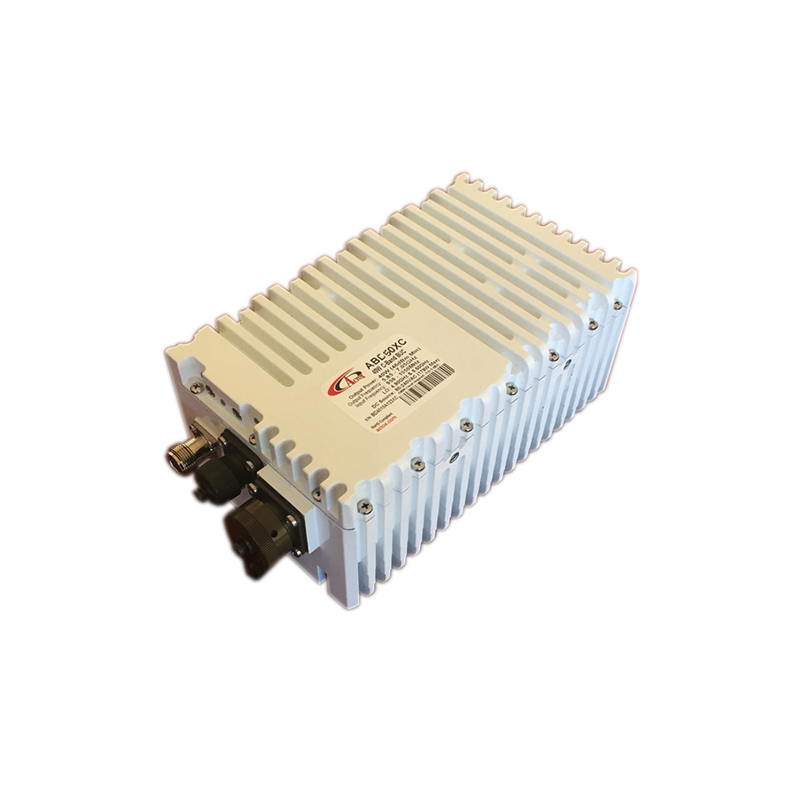

Actox ABC50XC / ABC50XCF

Actox ABC50XC / ABC50XCF  – 50W Full 5.85–7.025 GHz C-Band BUC

This smallest and lightest 50W L-To C-Band Block Up Converter is based on GaN technology. It is designed to be mounted on the feed horn. The unit covers all three C-Band sub-bands: Standard (5.850-6.425 GHz) and Palapa (6.365-6.725 GHz) and Insat (6.725-7.025 GHz).

Key Features

RF Frequency: 5.85 – 7.025 GHz

Output Power: 50W (+47 dBm min.), P-Linear 25.1W (44 dBm min.)

Dual local oscillator: 4.90 and 5.20 GHz

IF Frequency: 950 – 1825 MHz

GaN technology for high efficiency and reliability

Incomparable low power consumption (183W max)

Auto-ranging power input: 36 to 60 VDC

Digital temperature compensation

Power and lock status LED

Field-exchangeable (F/N) IF connector

Built-in redundancy option

Advanced M&C - combined RS-232/485 / Ethernet (HTTP and SNMP ver. 2 & 3) / FSK (optional)

Internal auto-sensing and controllable 10MHz high stability reference (optional)

Special Feature: Chinese GUI (optional)

Mechanical & Environmental

Compact feed-mount design

Dimensions: 195 × 120 × 104 mm

Weight: 2.96 kg max.

Vibration/Shock: MIL-STD-810E compliant

IP67 outdoor-rated enclosure

Operating temperature: -40°C to +55°C

Applications

VSAT uplink systems

Broadcast uplinks

Teleport infrastructure

Remote satellite communication terminals

Government and military SATCOM systems
