Actox ABE50DC / ABE50DCF
Extended C-band 50W BUC
• RF Frequency: 5.85 to 6.725 GHz
• IF Frequency: 950 to 1850 MHz
• Local Frequency: 4.9 GHz
• IF Connector: N (50Ω) or F type (75Ω)
• Output Power: +47 dBm min.
Security policy
Delivery policy
Return policy

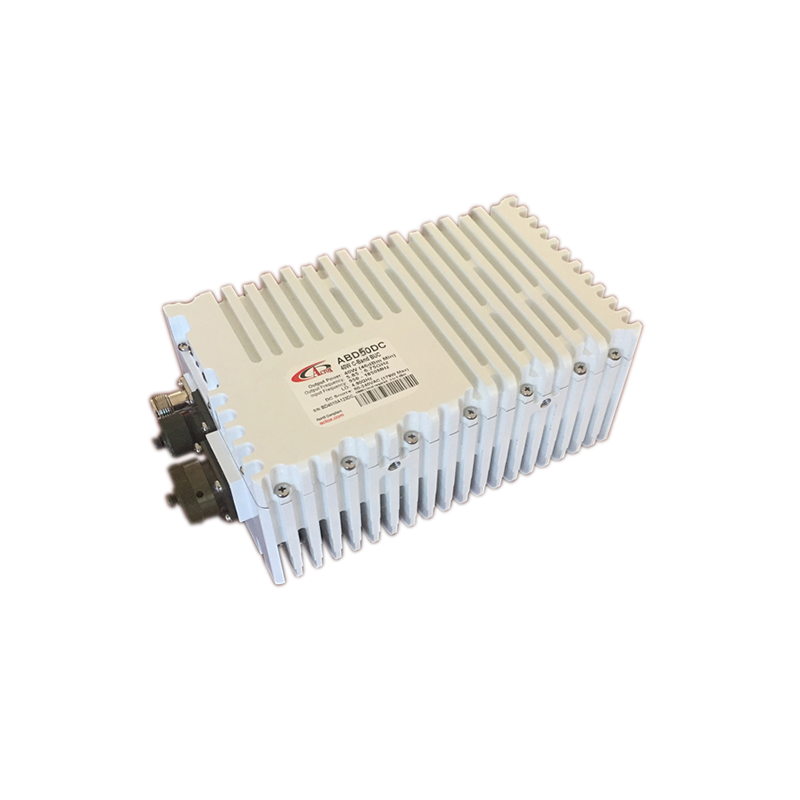

Actox ABE50DC / ABE50DCF – 50W Extended 5.85–6.725 GHz C-Band BUC
This smallest and lightest 50W L-To C-Band Block Up Converter is based on GaN technology. It is designed to be mounted on the feed horn. The unit covers C-Band sub-bands: Standard (5.850-6.425 GHz) and Palapa (6.365-6.725 GHz).
Key Features
RF Frequency: 5.85 – 6.725 GHz
Output Power: 50W (+47 dBm min.), P-Linear 25.1W (44 dBm min.)
Local oscillator: 4.90 GHz
IF Frequency: 950 – 1850 MHz
GaN technology for high efficiency and reliability
Incomparable low power consumption (184W max)
Auto-ranging powering option 18 - 75 VAC
Digital temperature compensation
Power and lock status LED
Field-exchangeable (F/N) IF connector
Built-in redundancy option
Internal auto-sensing and controllable 10MHz high stability reference (optional)
Advanced M&C - combined RS-232/485 / Ethernet (HTTP and SNMP ver. 2 & 3) / FSK (optional)
Special Feature: Chinese GUI (optional)
Mechanical & Environmental
Dimensions: 205 × 120 × 130 mm
Weight: 3.08 kg max.
Vibration/Shock: MIL-STD-810E compliant
IP67 outdoor-rated enclosure
Operating temperature: -40°C to +55°C
Applications
VSAT uplink systems
Broadcast uplinks
Teleport infrastructure
Remote satellite communication terminals
Government and military SATCOM systems
ABE50DC, ABE50DCF
- Transmit Band
- 5.850 - 6.725 GHz
- Power Output
- 50W
Specific References
Extended C-band 50W BUC
• RF Frequency: 5.85 to 6.725 GHz
• IF Frequency: 950 to 1850 MHz
• Local Frequency: 4.9 GHz
• IF Connector: N (50Ω) or F type (75Ω)
• Output Power: +47 dBm min.
