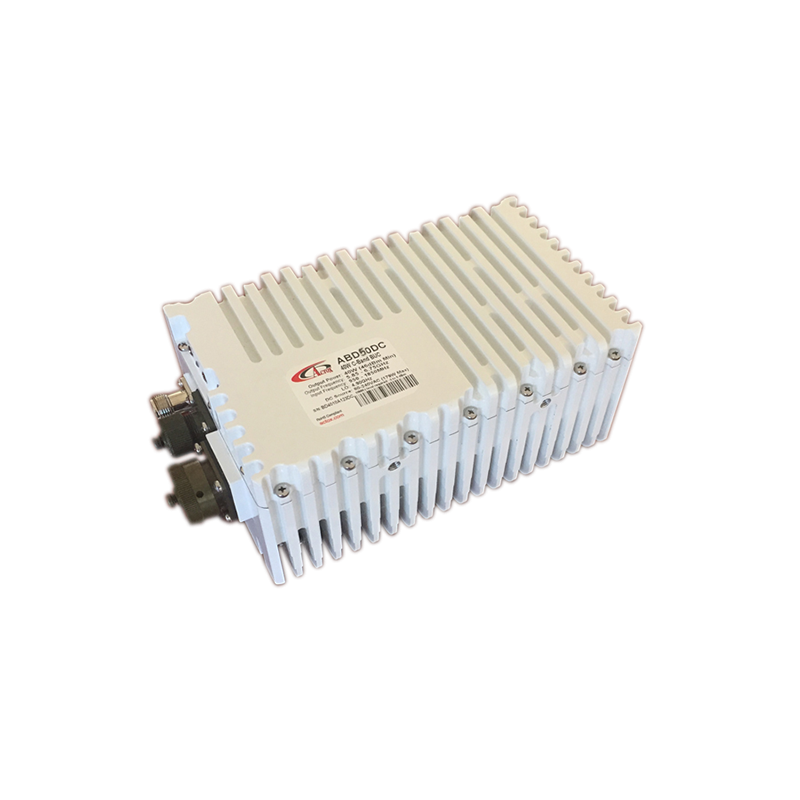

Actox ABD60DC / ABD60DCF – 60W Extended 5.85–6.725 GHz C-Band BUC
This smallest and lightest 60W(min) L-To C-Band Block Up Converter is based on GaN technology. It could be mounted directly on a feed horn. The unit covers Standard and Palapa C-Band frequencies: 5.85-6.725 GHz.
Key Features
RF Frequency: 5.85 – 6.725 GHz
Output Power: 60W (+48 dBm min.), P-Linear 30.4W (+44.8 dBm min.)
Local oscillator: 4.90 GHz
IF Frequency: 950 – 1825 MHz
GaN technology for high efficiency and reliability
Incomparable low power consumption (240W max)
Auto-ranging powering option 80 - 240 VAC
High power efficiency (60W min over temperature)
Digital temperature compensation
Power and lock status LED
Field-exchangeable (F/N) IF connector
Built-in redundancy option
Internal auto-sensing and controllable 10MHz high stability reference (optional)
Advanced M&C - combined RS-232/485 / Ethernet (HTTP and SNMP ver. 2 & 3) / FSK (optional)
Special Feature: Chinese GUI (optional)
Mechanical & Environmental
Dimensions: 195 × 120 × 104 mm
Weight: 2.96 kg max.
Vibration/Shock: MIL-STD-810E compliant
IP67 outdoor-rated enclosure
Operating temperature: -40°C to +55°C
Applications
VSAT uplink systems
Broadcast uplinks
Teleport infrastructure
Remote satellite communication terminals
Government and military SATCOM systems
ABD60DC, ABD60DCF
- Transmit Band
- 5.850 - 6.725 GHz
- Power Output
- 60W
