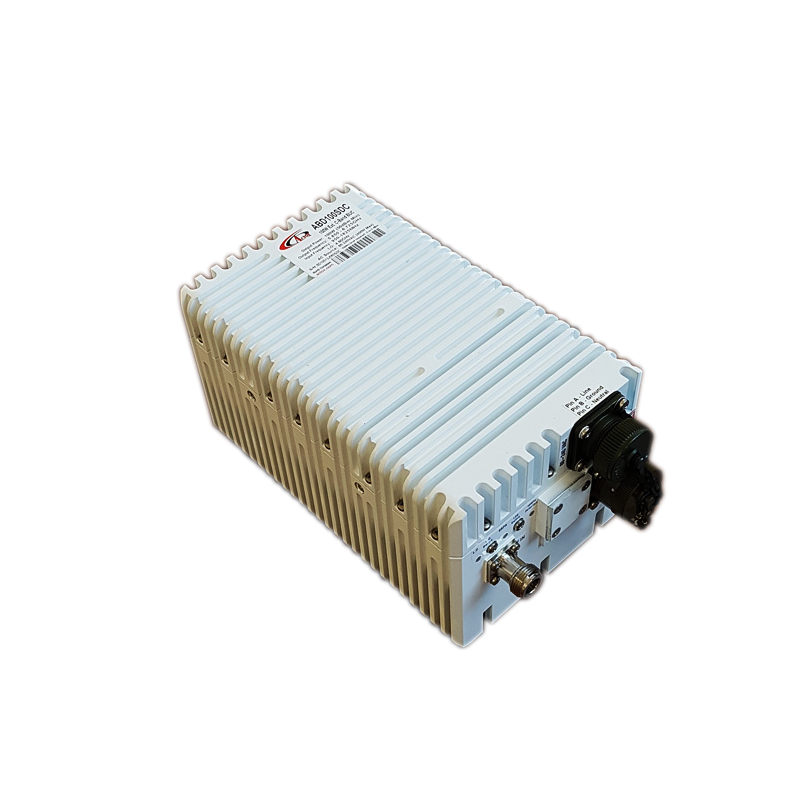

Actox ABC80IC / ABC80ICF – 80W Insat 6.725–7.025 GHz C-Band BUC
This smallest and lightest 80W L-To C-Band Block Up Converter is based on GaN technology. It is designed to be mounted on the feed horn. The unit covers C-Band sub-band Insat (6.725-7.025 GHz).
Key Features
RF Frequency: 6.725 – 7.025 GHz
Output Power: 80W (+49 dBm min.), P-Linear 45.5W (+46.5 dBm min.)
Local Oscillator: 5.76 GHz
IF Frequency: 965 – 1265 MHz
GaN technology for high efficiency and reliability
Incomparable low power consumption (350W max)
Auto-ranging powering option 36 - 60 VAC
Digital temperature compensation
Power and lock status LED
Field-exchangeable (F/N) IF connector
Internal 10MHz high stability reference (optional)
Advanced M&C - combined RS-232/485 / Ethernet (HTTP and SNMP ver. 2 & 3) / FSK (optional)
RoHS compliant
Mechanical & Environmental
Dimensions: 195 × 120 × 101.5 mm
Weight: 3.36 kg max.
Vibration/Shock: MIL-STD-810E compliant
IP67 outdoor-rated enclosure
Operating temperature: -40°C to +55°C
Applications
VSAT uplink systems
Broadcast uplinks
Teleport infrastructure
Remote satellite communication terminals
Government and military SATCOM systems
ABC80IC, ABC80ICF
- Transmit Band
- 6.725 - 7.025 GHz
- Power Output
- 80W
