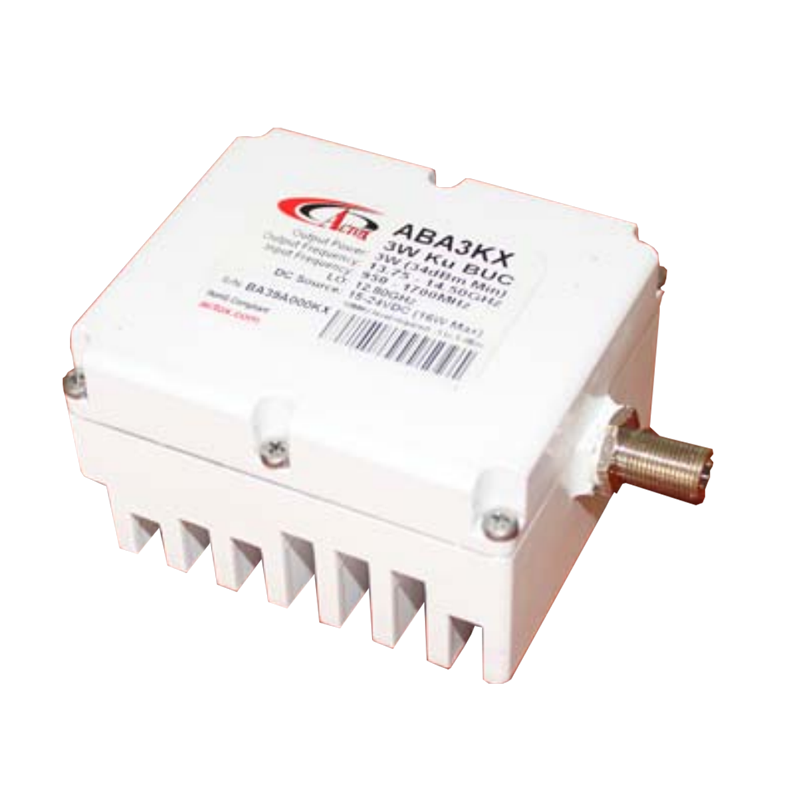

Actox ABA3GKX / ABA3GKXF
Extended Ku-band 3W mini-BUC
• RF Frequency: 13.75 to 14.75 GHz
• IF Frequency: 950 to 1950 MHz
• LO Frequency: 12.8 GHz
• IF Connector: N (50Ω) or F type (75Ω)
• Output Power: +34.3 dBm min.
Security policy
Delivery policy
Return policy
Actox ABA3GKX / ABA3GKXF – 3W Extended 13.75–14.75 GHz Ku-Band BUC
This smallest and lightest 3W L-To Ku-Band Block Up Converter covers Full 13.75 to 14.75 GHz frequency band. Incomparable low power consumption (< 1 amp) allows the use of the BUC with any modem without an external power supply. The unit is ideal for portable and mobile applications.
Key Features
RF Frequency: 13.75 – 14.75 GHz
Output Power: 3W (+34.3 dBm typ.)
Local Oscillator: 12.8 GHz
IF Frequency: 950 – 1950 MHz
GaN technology for high efficiency and reliability
Industry’s lowest power consumption (20W max.)
Auto-ranging powering option 15 - 30 VDC
Smallest package size and weight
Powered through IF cable
Digital temperature compensation
RoHS compliant
Mechanical & Environmental
Dimensions: 100.5 × 68 × 46 mm
Weight: 0.45 kg max.
Vibration/Shock: MIL-STD-810E compliant
IP67 outdoor-rated enclosure
Operating temperature: -40°C to +55°C
Applications
VSAT uplink systems
Broadcast uplinks
Teleport infrastructure
Remote satellite communication terminals
Government and military SATCOM systems
ABA3KX, ABA3KXF
- Transmit Band
- 13.75 - 14.75 GHz
- Power Output
- 3W
Specific References
Extended Ku-band 3W mini-BUC
• RF Frequency: 13.75 to 14.75 GHz
• IF Frequency: 950 to 1950 MHz
• LO Frequency: 12.8 GHz
• IF Connector: N (50Ω) or F type (75Ω)
• Output Power: +34.3 dBm min.
