Actox ABEF50KX / ABEF50KXF
Full Ku-band 50W BUC
• RF Frequency: 12.75 to 14.5 GHz
• IF Frequency: 950 to 1700 MHz
• Double LO: Switchable 11.8 & 12.8 GHz
• IF Connector: N (50Ω) or F type (75Ω)
• Output Power: +47 dBm min.
Security policy
Delivery policy
Return policy

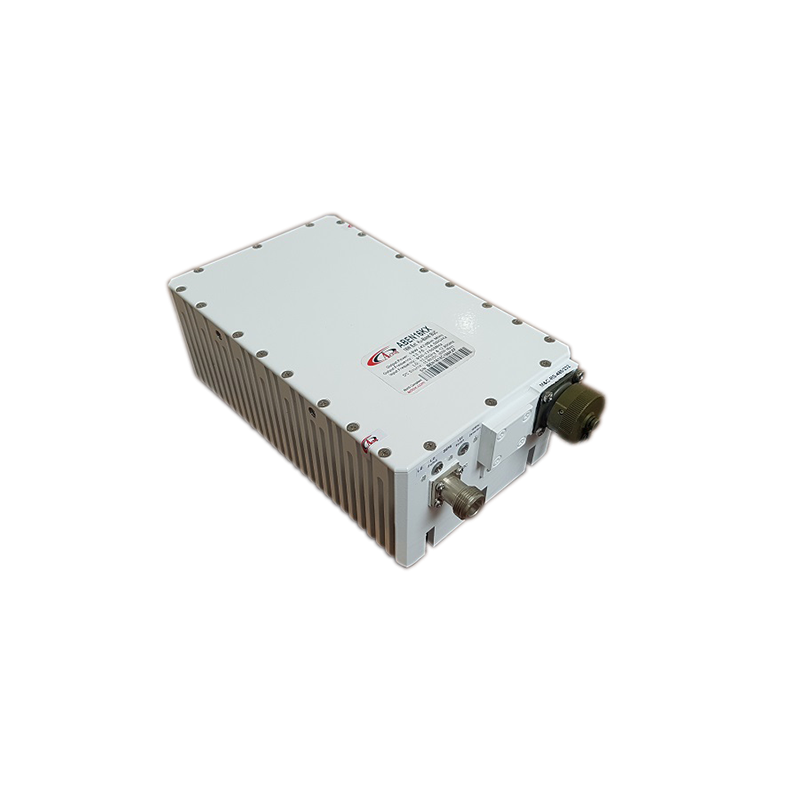

Actox ABEF50KX / ABEF50KXF – 50W Extended 12.75–14.5 GHz Ku-Band BUC
This smallest and lightest 50W Full L-To Ku-Band Block Up Converter is based on GaN technology. Incomparable low power consumption, double L.O., field-exchangeable connector, auto-sensing and controllable internal 10 MHz reference make this unit universal for any Ku-Band application. DC Built-in power and consumes less than 276W.
Key Features
RF Frequency: 12.75 – 14.5 GHz
Output Power: 50W (+47 dBm min.) 28.6W (+44.56 dBm min.) P-Linear
Double L.O. (switchable 11.80 & 12.8 GHz)
IF Frequency: 950 – 1700 MHz
GaN technology for high efficiency and reliability
Incomparable low power consumption (276W max)
Auto-ranging powering option 24 - 60 VDC
Digital temperature compensation
Field-exchangeable (F/N) IF connector
Internal auto-sensing and controllable 10MHz high stability reference (optional)
Advanced M&C - combined RS-232/485 / Ethernet (HTTP and SNMP ver. 2 & 3) / FSK (optional)
Special Feature: Chinese GUI (optional)
Mechanical & Environmental
Dimensions: 229 × 120 × 86.3 mm
Weight: 3.35 kg max.
Vibration/Shock: MIL-STD-810E compliant
IP67 outdoor-rated enclosure
Operating temperature: -40°C to +55°C
Applications
VSAT uplink systems
Broadcast uplinks
Teleport infrastructure
Remote satellite communication terminals
Government and military SATCOM systems
ABEF50KX, ABEF50KXF
- Transmit Band
- 12.75 - 14.50 GHz
- Power Output
- 50W
