Actox ABE60NKX / ABE60NKXF
Extended Ku-band 60W BUC
• RF Frequency: 13.75 to 14.5 GHz
• IF Frequency: 950 to 1700 MHz
• Double LO: Switchable 12.8 & 13.05 GHz
• IF Connector: N (50Ω) or F type (75Ω)
• Output Power: +47.8 dBm min.
Security policy
Delivery policy
Return policy

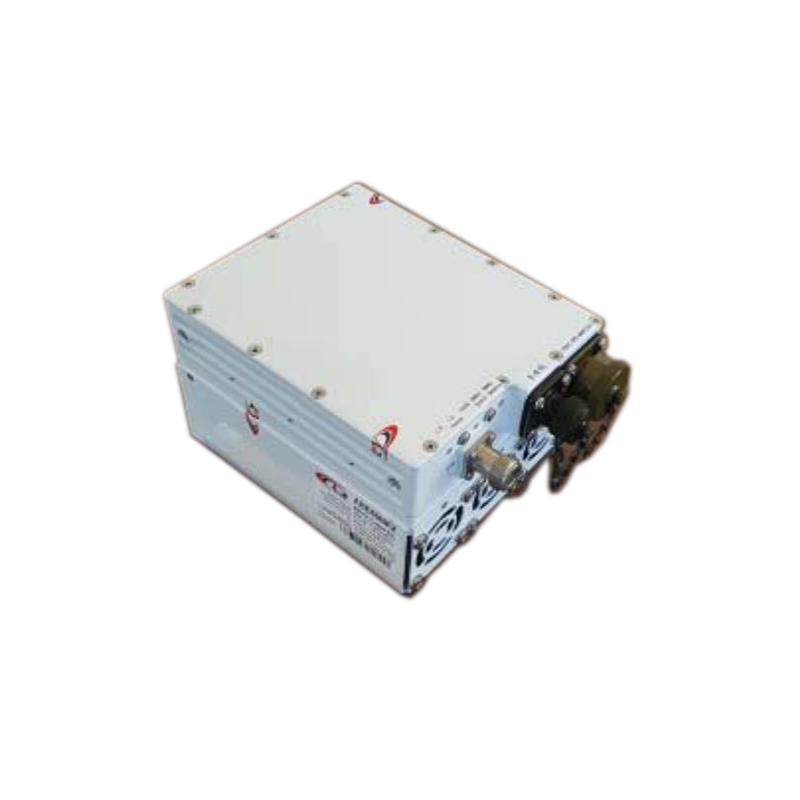

Actox ABE60NKX / ABE60NKXF – 60W Extended 13.75–14.5 GHz Ku-Band BUC
This smallest and lightest 60W L-To KuBand Block Up Converter is based on GaN technology. Incomparable low power consumption, double L.O., field-exchangeable connector, auto-sensing and controllable internal 10 MHz reference make this unit universal for any Ku-Band application.
Key Features
RF Frequency: 13.75 – 14.5 GHz
Output Power: 60W (+47.8 dBm min.) 30W (+44.8 dBm min.) P-Linear
Double L.O. (switchable 12.80 & 13.05 GHz)
IF Frequency: 950 – 1700 MHz
GaN technology for high efficiency and reliability
Incomparable low power consumption (269W max)
Auto-ranging powering option 16 - 55 VDC
Digital temperature compensation
Field-exchangeable (F/N) IF connector
Internal auto-sensing and controllable 10MHz high stability reference (optional)
Advanced M&C - combined RS-232/485 / Ethernet (HTTP and SNMP ver. 2 & 3) / FSK (optional)
Special Feature: Chinese GUI (optional)
Mechanical & Environmental
Dimensions: 140 × 120 × 89.5 mm
Weight: 2.2 kg max.
Vibration/Shock: MIL-STD-810E compliant
IP67 outdoor-rated enclosure
Operating temperature: -40°C to +55°C
Applications
VSAT uplink systems
Broadcast uplinks
Teleport infrastructure
Remote satellite communication terminals
Government and military SATCOM systems
ABE60NKX, ABE60NKXF
- Transmit Band
- 13.75 - 14.50 GHz
- Power Output
- 60W
Specific References
Extended Ku-band 60W BUC
• RF Frequency: 13.75 to 14.5 GHz
• IF Frequency: 950 to 1700 MHz
• Double LO: Switchable 12.8 & 13.05 GHz
• IF Connector: N (50Ω) or F type (75Ω)
• Output Power: +47.8 dBm min.
