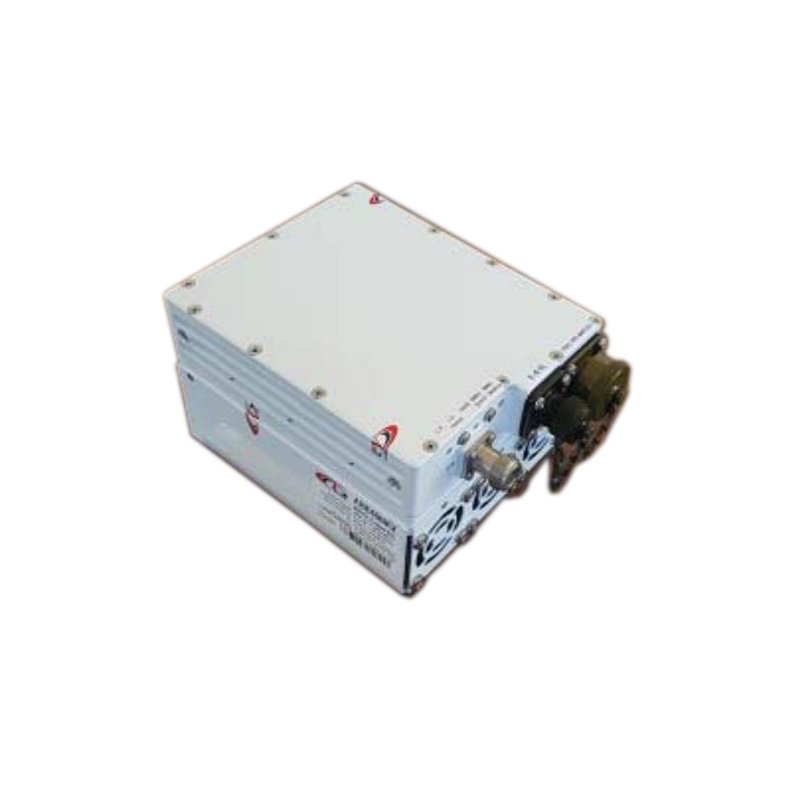

Actox ABC95NKX / ABC95NKXF – 95W Extended 13.75–14.5 GHz Ku-Band BUC
This smallest and lightest 95W L-To Ku Band Block Up Converter is based on GaN technology. Incomparable low power consumption, double L.O., field-exchangeable connector, auto-sensing and controllable internal 10 MHz reference make this unit universal for any Ku-Band application.
Key Features
RF Frequency: 13.75 – 14.5 GHz
Output Power: 95W (+49.7 dBm min.) 43.8W (+46.4 dBm min.) P-Linear
Double L.O. (switchable 12.8 & 13.05 GHz)
IF Frequency: 950 – 1700 MHz
GaN technology for high efficiency and reliability
Incomparable low power consumption (447W max.)
Auto-ranging powering option 36 - 60 VDC
Digital temperature compensation
Field-exchangeable (F/N) IF connector
Internal auto-sensing and controllable 10MHz high stability reference (optional)
Advanced M&C - combined RS-232/485 / Ethernet (HTTP and SNMP ver. 2 & 3) / FSK (optional)
Special Feature: Chinese GUI (optional)
Mechanical & Environmental
Dimensions: 140 × 120 × 89.5 mm
Weight: 2.2 kg max.
Vibration/Shock: MIL-STD-810E compliant
IP67 outdoor-rated enclosure
Operating temperature: -40°C to +55°C
Applications
VSAT uplink systems
Broadcast uplinks
Teleport infrastructure
Remote satellite communication terminals
Government and military SATCOM systems
ABC95NKX, ABC95NKXF
- Transmit Band
- 13.75 - 14.50 GHz
- Power Output
- 95W
