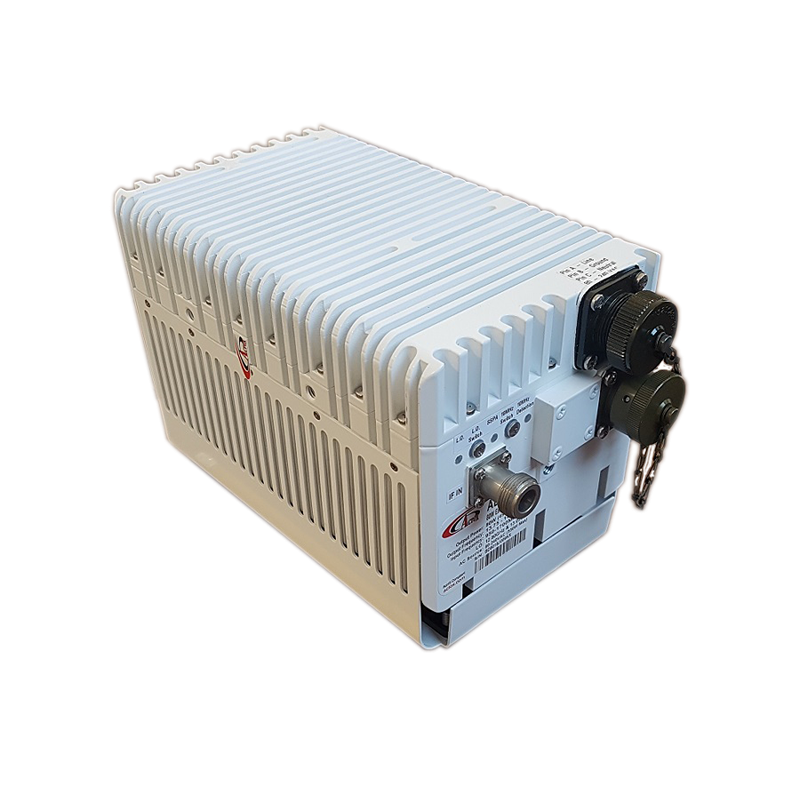

Actox ABDN100KX / ABDN100KXF

Actox ABDN100KX / ABDN100KXF – 100W Extended 13.75–14.5 GHz Ku-Band BUC

This smallest and lightest 100W L-To Ku Band Block Up Converter is based on GaN technology. Incomparable low power consumption, double L.O., field-exchangeable connector, auto-sensing and controllable internal 10 MHz reference make this unit universal for any KuBand application. M&C (FSK) capability enables troubleshooting, monitoring and controlling the BUC.

Key Features

RF Frequency: 13.75 – 14.5 GHz

Output Power: 100W (+50 dBm min.) 51.3W (+47.1 dBm min.) P-Linear

Double L.O. (switchable 12.8 & 13.05 GHz)

IF Frequency: 950 – 1700 MHz

GaN technology for high efficiency and reliability

Incomparable low power consumption (499W max.)

Auto-ranging powering option 80 - 240 VDC

Extreme P-Out GaN linearity

Digital temperature compensation

Field-exchangeable (F/N) IF connector

Internal auto-sensing and controllable 10MHz high stability reference (optional)

Built-in redundancy option

Advanced M&C - combined RS-232/485 / Ethernet (HTTP and SNMP ver. 2 & 3) / FSK (optional)

RoHS compliant

Mechanical & Environmental

Dimensions: 190 × 120 × 135 mm

Weight: 3.4 kg max.

Vibration/Shock: MIL-STD-810E compliant

IP67 outdoor-rated enclosure

Operating temperature: -40°C to +55°C

Applications

VSAT uplink systems

Broadcast uplinks

Teleport infrastructure

Remote satellite communication terminals

Government and military SATCOM systems
